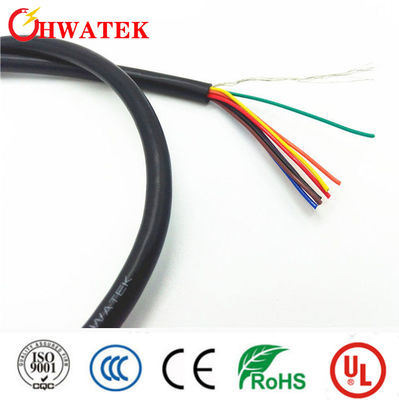

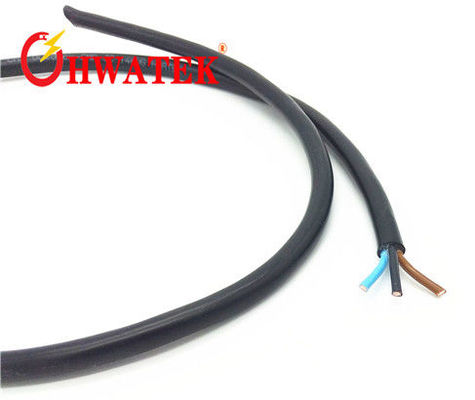

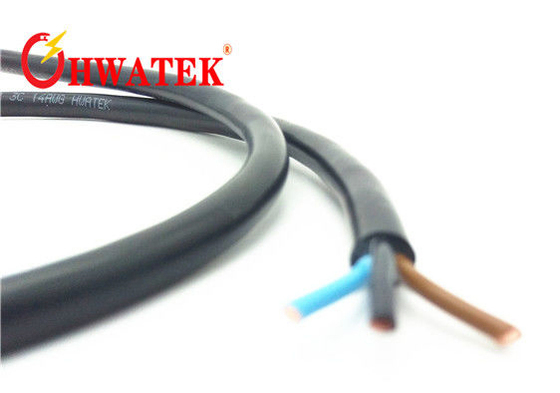

High Voltage Flame Retardant EV Charging Cable with PVC Sheath and Round Wire for Medical Equipment
Basic Properties
Certification:
ISO9001, CCC, RoHS
Trading Properties
Minimum Order Quantity:
3,000 Meters
Price:
US $0.5-1 / Meter
Product Summary
Eve, Evjt High Voltage Flame Retardant Power Charging Copper Wire Cable Type Conductor Insulation Jacket Max. Cond. Resistance(20ºC)Ω/km EVJE EVJT(300V) 18 AWG2-6C41/0.16 0.76 mm 0.76 mm 0-8.89 16 AWG2-6C26/0.254, 65/0.16 0.76 mm 1.52 mm 11.5-14.0 14 AWG2-6C41/0.254 0.76 mm 2.41 mm 23.0-31.7 12 AWG2...
Product Details
Highlight:
PVC Sheath EV Charging Cable
,Round Wire Electric Vehicle Charging Cable
,Medical Equipment Application EV Power Cable
Conductor Material:
Copper
Sheath Material:
PVC
Insulation Material:
TPE
Material Shape:
Round Wire
Rated Temperature:
80ºC-105ºC
Rated Voltage:
300V, 600V
Conductor Resistance:
Max. Cond. Resistance(20ºC)Ω/km
AWG Size:
18, 16, 14, 12, 10, 8, 6
Conductor Construction:
41/0.16, 26/0.254, 65/0.16, 41/0.254, 65/0.254, 105/0.254, 133/0.29, 133/0.36
Nominal Thickness:
0.76mm, 1.14mm, 1.52mm, 2.03mm, 2.41mm, 2.79mm, 3.17mm, 3.56mm, 3.94mm, 4.32mm, 4.83mm
Core Diameter:
2.8mm, 3.1mm, 3.4mm, 3.9mm, 4.3mm, 4.7mm, 5.7mm, 7.4mm, 8.5mm
Outer Diameter:
0-12.0mm, 11.18-15.0mm, 14.54-20.0mm, 18.16-30.0mm, 27.82-40.0mm, 37.38-45.0mm, 44.54-60.0mm, 0-20.0mm, 17.62-25.0mm, 24.78-35.0mm, 31.84-46.0mm, 45.32-60.0mm, 26.22-35.0mm, 33.38-45.0mm, 40.44-50.0mm, 47.86-55.0mm
Shielding:
Tinned Copper Braid
Low Temperature Resistance:
-40ºC
Quantity Per Roll:
305m, 610m
Product Description
Eve, Evjt High Voltage Flame Retardant Power Charging Copper Wire Cable
| Type | Conductor | Insulation | Jacket | Max. Cond. Resistance(20ºC)Ω/km |
|---|---|---|---|---|
| EVJE EVJT(300V) | 18 AWG 2-6C 41/0.16 |
0.76 mm | 0.76 mm | 0-8.89 |
| 16 AWG 2-6C 26/0.254, 65/0.16 |
0.76 mm | 1.52 mm | 11.5-14.0 | |
| 14 AWG 2-6C 41/0.254 |
0.76 mm | 2.41 mm | 23.0-31.7 | |
| 12 AWG 2-6C 65/0.254 |
0.76 mm | 3.17 mm | 38.2-50.8 | |
| EVE EVT(600V) | 18 AWG 2C or more 41/0.16 |
0.76 mm | 2.03 mm | 0-12.7 |
| 16 AWG 2C or more 36/0.254,65/0.16 |
0.76 mm | 2.41 mm | 12.8-19.1 | |
| 14 AWG 2C or more 41/0.254 |
1.14 mm | 2.79 mm | 19.2-25.4 | |
| 12 AWG 2C or more 65/0.254 |
1.14 mm | 3.17 mm | 25.5-38.1 |
Application
Connection wire between EV charging equipment and EV, including various EVs, charging stations, and charging piles. Application standard: UL62.
Product Characteristics
- Flexible cable for easy installation
- Excellent resistance to oil, pressure, and abrasion
- Withstands low temperatures down to -40°C

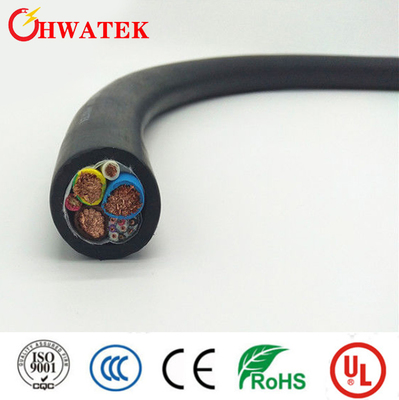

Product Structure
- Tinned or bare stranded copper conductor
- TPE or PVC insulation
- Tinned copper braid shielding
- PVC or TPE jacket
Technical Parameters
- Rated temperature: 80°C-105°C
- Rated Voltage: 300V (EVJE, EVJT) / 600V (EVE, EVT)
Company Profile

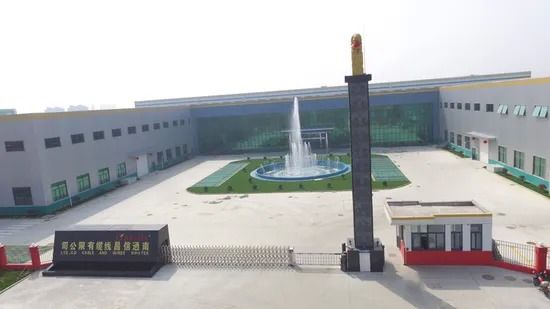

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
