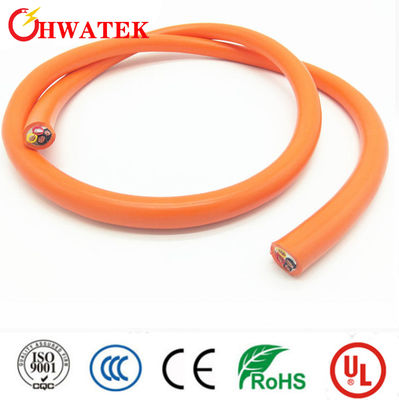

3C×10AWG+2C×18AWG 600V 105ºC EV Charging Cable with TPE Insulation and Bare Copper Stranded

Large Image : 3C×10AWG+2C×18AWG 600V 105ºC EV Charging Cable with TPE Insulation and Bare Copper Stranded

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	50 Meters

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	TPE
Insulation Material:	TPE	Material Shape:	Round Wire
Conductor Size:	105/0.254±0.008mm, 65/0.127±0.008mm	Pitch:	59mm Max., 32mm Max.
O.D.:	3.00mm, 1.18mm	Insulation Thickness:	1.14mm, 0.76mm
Min. Thickness:	1.02mm, 0.68mm	Insulation O.D.:	5.40±0.20mm, 2.80±0.10mm
Rated Temperature:	-40 ~ +105°C	Rated Voltage:	600V
Bending Radius:	5xOD	Flammability Test:	IEC60332-1
Transport Package:	300m/Reel
Highlight:	3C×10AWG+2C×18AWG EV Charging Cable , 600V EV Charging Cable , 105ºC EV Charging Cable

Eve 3c5.0mm2 and 2c*0.8mm2 Cable

Product Specifications

Item	Unit A: 3C×10AWG	Unit B: 2C×18AWG
Conductor Material	Bare Copper Stranded
Size	105/0.254±0.008mm	65/0.127±0.008mm
Pitch (Ref)	59mm Max.	32mm Max.
O.D. (Ref)	3.00mm	1.18mm
Insulation Material	TPE
Min. Average Thickness	1.14mm	0.76mm
Min. Thickness at Any Point	1.02mm	0.68mm
O.D.	5.40±0.20mm	2.80±0.10mm

Certification

Certificate No.	Product Types
E473281 (UL)	EVE 3×10AWG(5.0mm2)+2×18AWG(0.8mm2) 600V 105ºC FT2 HWATEK

Structure Diagram

Technical Details

Reference Standard: IEC 62893, IEC 62893-4-1

Product Category: AC:EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90-450/750V 1.0-70(2-5C)+0.5-0.75(P/P2)(1-10C)

Construction

Rated temperature: -40 ~ +105°C
Rated voltage: 600V
Conductor: Bare copper stranded
Insulation material: TPE
Sheath material: TPE
Flexible construction, resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress
IEC60332-1 flammability test compliant
Minimum bending radius 5xOD
Easy installation

Applications: Suitable for all kinds of electric vehicles, charging piles, power stations, and charging stations.

Structural Parameters

The detailed dimensions are subject to the product specifications.
Other specifications can be designed and manufactured according to customer requirements.
The color of the sheath is generally black or orange. Custom colors available upon request.
