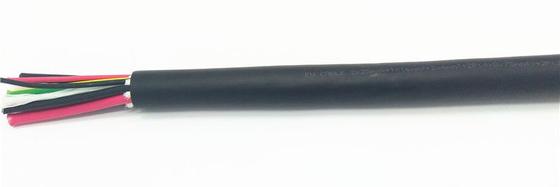

450V/750V AC/DC EV Charging Cable with 2 X 50mm2+35mm2+6X0.75mm2 Copper Conductor for Electric Vehicles

Name: 450V/750V AC/DC EV Charging Cable with 2 X 50mm2+35mm2+6X0.75mm2 Copper Conductor for Electric Vehicles
Brand: NANTONG HWATEK WIRES AND CABLE CO.,LTD.
Price: 0.50 USD
Availability: InStock

Large Image : 450V/750V AC/DC EV Charging Cable with 2 X 50mm2+35mm2+6X0.75mm2 Copper Conductor for Electric Vehicles

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	50 Meters

Contact Now

Detailed Product Description

Voltage Rating:	450V/750V AC/DC	Conductor Material:	Copper
Sheath Material:	TPU	Insulation Material:	Evi-2
Cable Specification:	2C×50mm²+1C×35mm²+6C×0.75mm²+W	Current Rating:	200A
Conductor Size:	70mm²	Outer Diameter:	~31mm
Rated Temperature:	-40 ~ +90°C	Rated Voltage DC:	1500V DC (IEC), 1000V DC (GB)
Minimum Bending Radius:	5xOD	Flammability Test:	IEC60332-1
Material Shape:	Round Wire	Signal Cores:	3x Pairs 2x0.75mm²
Production Capacity:	100km/Month
Highlight:	450V/750V AC/DC EV Charging Cable , 2 X 50mm2+35mm2+6X0.75mm2 EV Power Cable , Copper Conductor Electric Vehicle Charging Cable

450V/750V AC/DC EV Charging Cable 2 X 50mm²+35mm²+6X0.75mm²

Basic Specifications

Cable Specification: 200A, 70mm²
Power: 1x50mm² Black Core + 1x50mm² Red Core
PE: 1x35mm² Green-Yellow Core
Signal: 3x Pairs 2x0.75mm²
Cores Color: Orange, Blue, White, Violet, Brown, Grey
Sheath Outer Diameter: ~31mm
Cable Standard: IEC 62893, IEC 62893-4-1

Certification

Certificate No.	Product Types
CQC16011142377	EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V

Technical Specifications

Reference Standard: IEC 62893, IEC 62893-4-1
Product Category: AC:EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90-450/750V 1.0-70(2-5C)+0.5-0.75(P/P2)(1-10C)
Rated Temperature: -40°C to +90°C
Rated Voltage: IEC 1500V DC / GB 1000V DC
Conductor: Bare copper stranded
Insulation Material: EVI-2
Sheath Material: TPU

Product Features

Flexible construction
Resistant to cold, oil (11 types), ozone, abrasion, UV
Withstands external pressure and thermal stress
IEC60332-1 flammability test compliant
Minimum bending radius: 5xOD
Easy installation

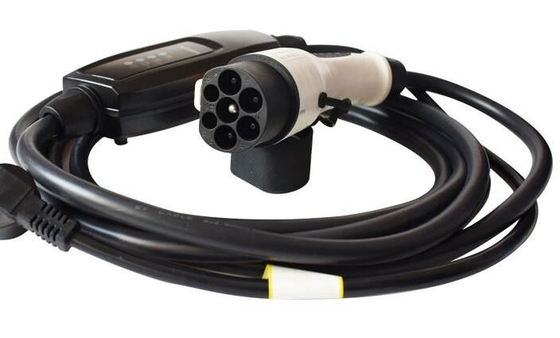

Product is applicable for all kinds of electric vehicles, charging piles, power stations, and charging stations.

Customization Options

Detailed dimensions are subject to product specifications
Other specifications can be designed and manufactured according to customer requirements
Sheath color is generally black or orange, but can be customized
