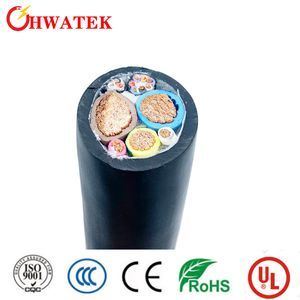

1000V High Voltage DC Electric EV Charging Cable with TPU Insulation and RoHS Compliant Multicore Design
Basic Properties
Certification:
ISO9001, CE, CCC, RoHS
Trading Properties
Minimum Order Quantity:
3,000 Meters
Price:
US $0.5-1 / Meter
Product Summary
1000V HV High Voltage EV Power Charger Multicore DC Electric Wire Cable Product Specifications SPECIFICATION CABLE NAME EV Cable CABLE SPEC 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)RoHS Compliant Item A: 2C×80mm2 B: 1C×25mm2 C: 1C×4mm2 D: (3C×0.75mm2)(P2) E: (7C×0.75mm2) Detailed ...
Product Details
Highlight:
DC Electric EV Charging Cable
,TPU Insulation EV Charging Cable
,RoHS Compliant EV Charging Cable
Sheath Material:
TPE
Insulation Material:
TPU
Material Shape:
Round Wire
Cable Specification:
2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
Conductor Material:
Bared Copper Stranded
Conductor Size:
2580/0.20 ±0.008mm, 798/0.20 ±0.008mm, 224/0.15±0.008mm
Outer Diameter:
12.40±0.25mm, 7.00±0.20mm, 2.70±0.15mm, 1.40±0.10mm
Insulation Thickness:
1.60mm, 1.20mm, 1.00mm, 0.50mm
Rated Voltage:
DC 1000V
Rated Temperature:
Jacket -40~90ºC, Insulation -40~125ºC
Max Conductor Resistance:
0.242Ω/km, 0.78Ω/km, 4.95Ω/km, 26Ω/km
Insulation Voltage Withstand:
AC 2.5kV/5min, Leakage Current ≤5mA
Min Insulation Resistance:
500MΩ.km
Tensile Strength:
≥20MPa
Elongation:
≥300%
Product Description
1000V HV High Voltage EV Power Charger Multicore DC Electric Wire Cable
Product Specifications
| SPECIFICATION | CABLE NAME | EV Cable |
|---|---|---|
| CABLE SPEC | 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant |
|
| Item |

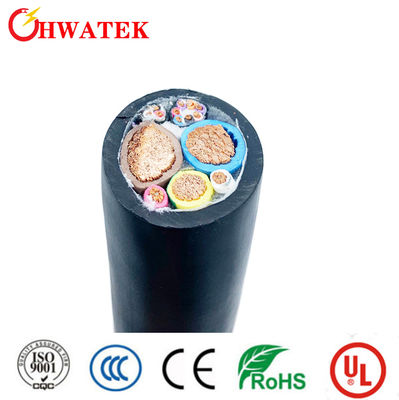

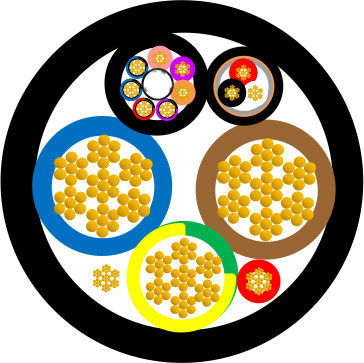

A: 2C×80mm2 B: 1C×25mm2 C: 1C×4mm2 D: (3C×0.75mm2)(P2) E: (7C×0.75mm2) |
|
Detailed Construction
| Component | Specification |
|---|---|
| CONDUCTOR |
Material: Bared copper stranded Size: - 2580/0.20 ±0.008mm - 798/0.20 ±0.008mm - 224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar - 40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar - 40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar |
| O.D.(Ref.) | 12.40±0.25mm | 7.00±0.20mm | 2.70±0.15mm | 1.40±0.10mm | 1.40±0.10mm |
| INSULATION |
Material: Thermoplastic(EF2585,85±3A) Min. average thickness: 1.60mm | 1.20mm | 1.00mm | 0.50mm | 0.50mm Min.thickness at any point: 1.34mm | 0.98mm | 0.80mm | 0.35mm | 0.35mm O.D.: 15.60±0.40mm | 9.60±0.30mm | 4.70±0.20mm | 2.50±0.10mm | 2.50±0.10mm |
| CABLING-1 |
Filler: / | Cotton | Cotton Material: / | AL-mylar(facing out) | Non-woven |
| BRAID |
Material: / | Tinned copper | / Size: / | 0.12mm,≥60% | / |
| In-JACKET |
Material: / | TPE | TPE Min. average thickness: / | 0.60mm | 0.60mm Min.thickness at any point: / | 0.42mm | 0.42mm O.D.: / | 7.20±0.25mm | 9.70±0.25mm |
| CABLING |
Filler: Strengthed PP rope Material: Non-woven(≥25% overlapping) Assembly: 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) |
| JACKET |
Material: TPU Min. average thickness: 2.80mm Min.thickness at any point: 2.28mm O.D.: 38.00+0.6/-1.00mm |
Performance Characteristics
| ELECTRICAL CHARACTERISTICS | PHYSICAL PROPERTIES |
|---|---|
|
Rated voltage: DC 1000V Rated temperature: - Jacket: -40~90ºC - Insulation: -40~125ºC Max. conductor resistance(20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km Insulation Voltage withstand(Core A &B,10m): AC 2.5kV/5min,leakage current ≤5mA Completed cable Voltage withstand(Core A to A &B,10m): AC 3.5kV/15min,leakage current ≤5mA Min. Insulation resistance(20ºC, Core A to A &B): 500MΩ.km |
Tensile strength: ≥20MPa Elongation: ≥300% Aged condition: 110±1ºC×168h Percent of original tensile strength: ≤±30% Percent of original elongation: ≤±30% High temperature pressure test: ≤50% Heat shock test: No crack Compatibility test: GB/T 33594 Flame test: GB/T 18380.12-2008 Artificial weathering test: GB/T 33594 Low-temperature impact test: -40ºC×16H, No crack Chemical stress acid: N-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594 Vehicle rolling: Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21 Min. Bend radius: 6*OD Abrasion resistance: ≥2000times Resistance against chemicals: GB/T 33594 Crush resistance test: GB/T 33594 Curved around the test: GB/T 33594 |
