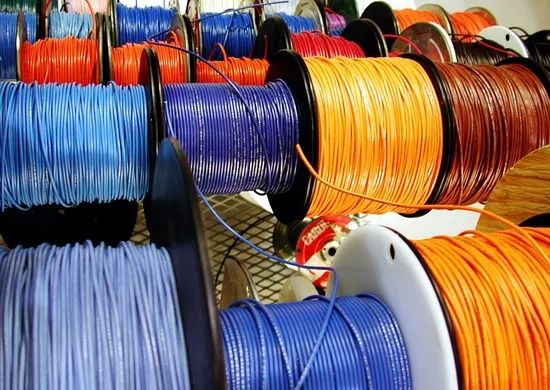

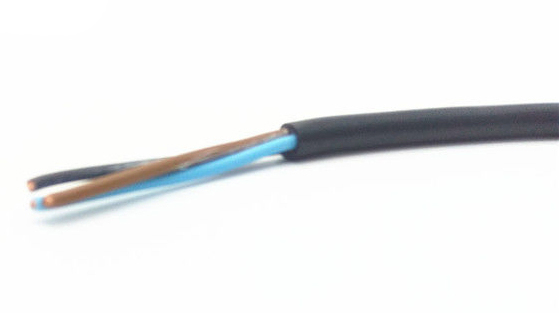

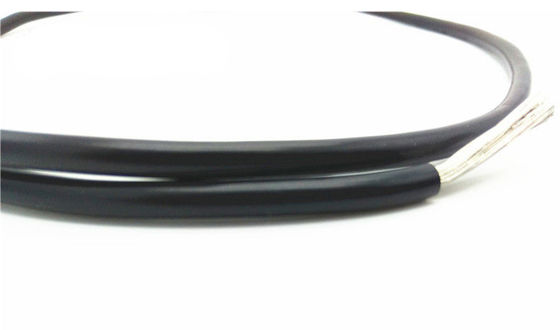

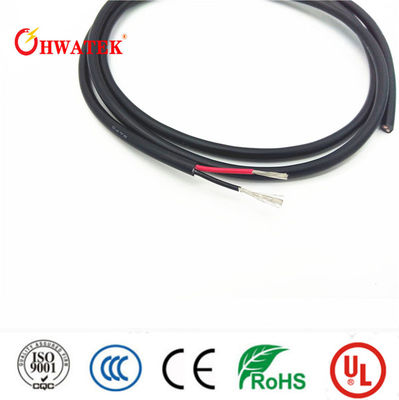

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation
Basic Properties
Certification:
ISO9001, CE, CCC, RoHS
Trading Properties
Minimum Order Quantity:
100 Meters
Product Summary
Customized 42 AWG and 75 Ohms Medical Device Cables Product Specifications Conductor: Silver plate copper alloy Jacket Size: 42AWG Construction: 7/0.025mm Strand Dia: 0.075mm Insulation: Foam PFA Nom.Thickness: 0.10mm Insulation Dia: 0.27±0.05mm Insulation colour: Natural Spiral Tinned copper alloy, ...
Product Details
Highlight:
Silver Plate Copper Medical Device Cable
,PTFE Sheath Medical Device Cable
,PFA Insulation Medical Device Cable
Conductor Material:
Silver Plate Copper
Sheath Material:
PTFE
Insulation Material:
PFA
Material Shape:
Round Wire
Cable Size:
42AWG
Construction:
7/0.025mm
Strand Diameter:
0.075mm
Insulation Thickness:
0.10mm
Insulation Diameter:
0.27±0.05mm
Final Assembly Diameter:
7.30mm
Jacket Thickness:
0.60mm
Outer Diameter:
9.40±0.30mm
Rated Temperature:
60°C
Rated Voltage:
30V
Transport Package:
500m/Reel
Product Description
Customized 42 AWG and 75 Ohms Medical Device Cables
Product Specifications
- Conductor: Silver plate copper alloy Jacket
- Size: 42AWG
- Construction: 7/0.025mm
- Strand Dia: 0.075mm
- Insulation: Foam PFA
- Nom.Thickness: 0.10mm
- Insulation Dia: 0.27±0.05mm
- Insulation colour: Natural
- Spiral Tinned copper alloy, 0.0254mm, ≥90%
- Inner jacket Pet tape, ≥25%
- Colour options: White (A1,A4,A5), Black (A2,A6,A7), Red (A3,A8,A9), Blue (A10,A11,A12)
- Assembly-A: 16Cx42AWG
- Final assembly: 12×Assembly-A+Filler
- Final assembly Dia. nom.: 7.30mm
- Material: PTFE tape, ≥25%
- Braid: Tinned copper tinsel, 0.11mm, ≥95%
- Jacket: PVC
- Nom.Thickness: 0.60mm
- Outer Dia.: 9.40±0.30mm
- Colour: White (standard, customizable)
Technical Specifications
- Reference standard: NOUL
- Product Category: NOUL192Cx42AWG(60pF)
- Rated temperature: 60°C
- Rated voltage: 30V
- Conductor: Silver plate copper alloy
- Insulation material: Foam PFA
- Sheath material: PVC
Customization Options
- Detailed dimensions are subject to product specifications
- Other specifications can be designed and manufactured according to customer requirements
- Standard sheath color is black, customizable upon request
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certifications
Production Process
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
