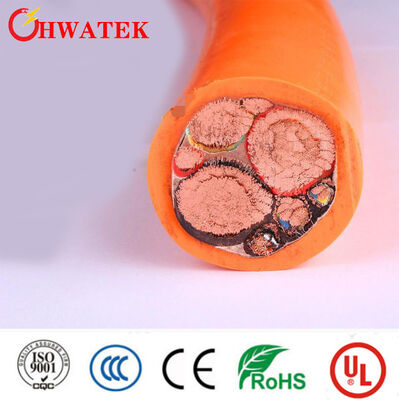

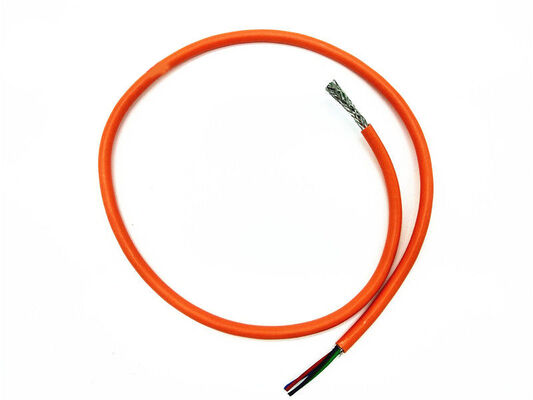

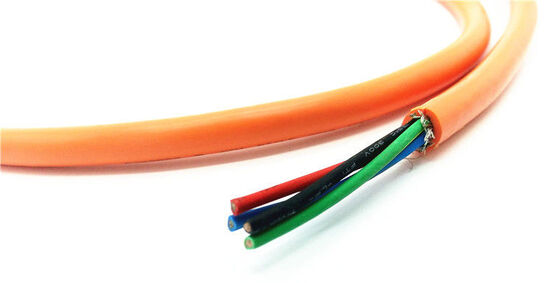

UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles
Basic Properties
Place of Origin:
China
Brand Name:
HWATEK
Certification:
ISO9001, CCC, RoHS
Model Number:
UL
Trading Properties
Minimum Order Quantity:
1,000
Price:
Negotiable
Standard Packaging:
Reels or rolls
Delivery Time:
4 Weeks
Payment Terms:
T/T
Supply Ability:
1000KM/ month
Product Summary
UL/CSA certified EV charging cables. Durable TPE/PVC construction, -40°C to 105°C range, VW-1 flame test approved. Custom lengths & colors available. For EVs, charging piles & stations.
Product Details
Highlight:
UL Certified EV Charging Cable
,300V/600V Rated Electric Vehicle Charging Cable
,Cold Resistant EV Power Cable
Conductor Material:
Copper
Sheath Material:
PVC
Insulation Material:
TPE
Material Shape:
Round Wire
Rated Temperature:
-40 ~ +105°C
Rated Voltage:
300V (EVJE, EVJT), 600V (EVE, EVT)
Conductor Type:
Stranded Bare Or Tinned Copper
Wire Specifications:
3×16AWG To 2×2AWG+4AWG+18AWG
Reference Current:
12A To 100A
Diameter Range:
8.2mm To 30.1mm
Cold Resistance:
Yes
Abrasion Resistance:
Yes
Oil Resistance:
Yes
Water Resistance:
Yes
UV Resistance:
Yes
Product Description
UL Certified EVE EVT EVJE EVJT Electric Vehicle Charging Cable
Structure Diagram
Reference Standards
UL62 CSA C22.2 No.49
Product Categories
EVE / EVT
18AWG-500cmil, ≥2 Cores
18AWG-500cmil, ≥2 Cores
EVJE / EVJT
18AWG-12AWG, 2-6 Cores
18AWG-12AWG, 2-6 Cores
Construction Specifications
Rated Temperature
-40°C to +105°C
-40°C to +105°C
Rated Voltage
300V (EVJE, EVJT)
600V (EVE, EVT)
300V (EVJE, EVJT)
600V (EVE, EVT)
Conductor
Stranded bare or tinned copper
Stranded bare or tinned copper
Insulation Material
TPE/PVC
TPE/PVC
Sheath Material
TPE/PVC
TPE/PVC
Performance Features
- Cold resistance
- Abrasion resistance
- Oil resistance
- Water resistance
- UV resistance
- Passes VW-1 flame test
- Excellent resistance to flame propagation
Applications
Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameter Table
| Category | Wire Specifications | Reference Current (A) | Diameter (mm) |
|---|---|---|---|
| UL:EVE,EVT 600V | 3×16AWG | 12 | 10.8 |
| UL:EVE,EVT 600V | 3×14AWG | 16 | 13.4 |
| UL:EVE,EVT 600V | 3×12AWG | 23 | 14.2 |
| UL:EVE,EVT 600V | 3×10AWG | 32 | 16.2 |
| UL:EVE,EVT 600V | 3×16AWG+1×18AWG | 12 | 11.4 |
| UL:EVE,EVT 600V | 3×14AWG+1×18AWG | 16 | 13.6 |
| UL:EVE,EVT 600V | 3×12AWG+1×18AWG | 23 | 14.3 |
| UL:EVE,EVT 600V | 3×10AWG+1×18AWG | 32 | 15.9 |
| UL:EVE,EVT 600V | 3×8AWG+1×18AWG | 46 | 21.8 |
| UL:EVE,EVT 600V | 2×8AWG+10AWG+18AWG | 46 | 20.9 |
| UL:EVE,EVT 600V | 2×6AWG+8AWG+18AWG | 63 | 23.1 |
| UL:EVE,EVT 600V | 2×4AWG+6AWG+18AWG | 75 | 26.5 |
| UL:EVE,EVT 600V | 2×2AWG+4AWG+18AWG | 100 | 30.1 |
| UL:EVE,EVT 600V | 3×16AWG+2×18AWG | 12 | 12.1 |
| UL:EVE,EVT 600V | 3×14AWG+2×18AWG | 16 | 13.9 |
| UL:EVE,EVT 600V | 3×12AWG+2×18AWG | 23 | 15.0 |
| UL:EVE,EVT 600V | 3×10AWG+2×18AWG | 32 | 16.6 |
| UL:EVE,EVT 600V | 2×8AWG+10AWG+2×18AWG | 46 | 21.9 |
| UL:EVE,EVT 600V | 2×6AWG+8AWG+2×18AWG | 63 | 24.8 |
| UL:EVJE,EVJT 300V | 3×16AWG | 12 | 8.2 |
| UL:EVJE,EVJT 300V | 3×14AWG | 16 | 9.0 |
| UL:EVJE,EVJT 300V | 3×12AWG | 23 | 10.1 |
| UL:EVJE,EVJT 300V | 3×16AWG+1×18AWG | 12 | 8.8 |
| UL:EVJE,EVJT 300V | 3×14AWG+1×18AWG | 16 | 9.5 |
| UL:EVJE,EVJT 300V | 3×12AWG+1×18AWG | 23 | 11.2 |
| UL:EVJE,EVJT 300V | 3×16AWG+2×18AWG | 12 | 9.5 |
| UL:EVJE,EVJT 300V | 3×14AWG+2×18AWG | 16 | 12.1 |
| UL:EVJE,EVJT 300V | 3×12AWG+2×18AWG | 23 | 13.2 |
1. Detailed dimensions are subject to product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. Sheath color is generally black or orange. Custom colors available upon request.
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Quality Certifications
We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certificates. All products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.
Management Philosophy
Operating with global customers through our well-established sales system based on the principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certificates & Quality Assurance

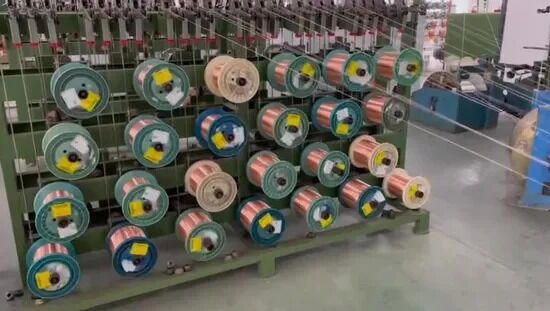

Production Process
