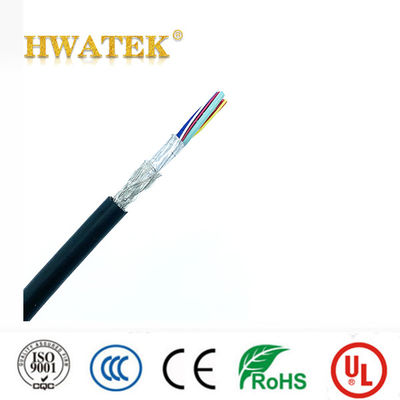

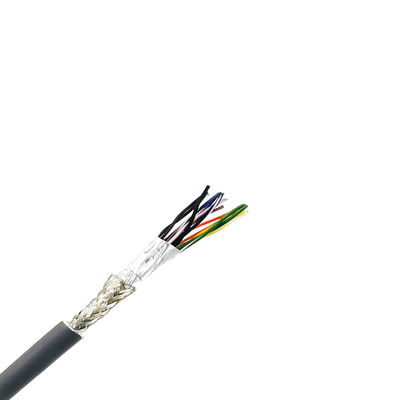

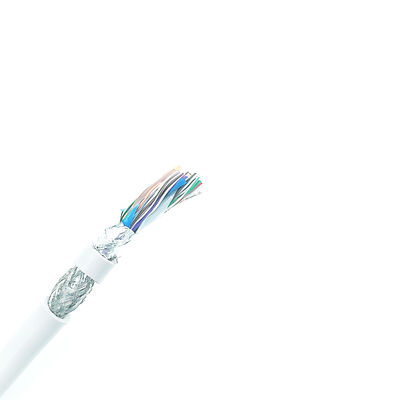

Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable

Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable
Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable

Large Image :  Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable

Product Details:
Place of Origin: China
Brand Name: HWATEK
Certification: ISO9001, CCC, RoHS
Model Number: Medical
Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: Negotiable
Packaging Details: Reels or rolls
Delivery Time: 4 Weeks
Payment Terms: T/T
Supply Ability: 1000KM/ month
Contact Now
Detailed Product Description
Conductor Material: Tinned Copper Sheath Material: PVC
Insulation Material: TPE Material Shape: Round Wire
Rated Voltage: 30V Rated Temperature: 80ºC
Voltage Test: 0.50kV/1min ISO: ISO10993
Flame Retardant: FT-1
Highlight:

Heat Resistant EV Charging Cable

,

PVC Insulated Electric Vehicle Charging Cable

,

High-Flexible EV Power Cable

Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable
Key Advantages
  • UV resistant for outdoor applications
  • High-flame resistance
  • Moisture-proof protection
Application Range
  • Medical Robotics
Cable Construction
Conductor: Stranded, tinned or bare copper
Insulation: TPE
Assembly: 10~70(2~5 cores) + 0.5~0.75P(1~10 cores)
Non-woven wrap
Sheath: PVC
Compliance Standards
ISO10993
RoHS Compliant
REACH Compliant
Technical Specifications
ISO 9001 Certificate.pdf
ITEM A : 3×(1P×28AWG+AB) B :(4C×28AWG+A) B :(1P×20AWG+A)
CONDUCTOR Material Tinned copper stranded
Size 19/0.08mm 19/0.08mm 65/0.10mm
O.D.(Ref) 0.40mm 0.40mm 0.93mm
INSULATION Material TPE
Nom. thickness 0.15mm 0.15mm 0.15mm
O.D. 0.80±0.08mm 0.80±0.08mm 1.30±0.08mm
CABLING-1 O.D. 1.60mm Nom.1.95mm 2.60mm
Material Al-mylar(face in) Al-mylar(face in) Al-mylar(face in)
BRAID Material Tinned copper / /
Size 0.08mm,≥90%
INNER JACKET Material TPE
Nom. thickness 0.30mm
O.D. 2.70±0.10mm
CABLING-2 Filler Solid bar
Material Al-mylar(face out)
Assembly 3×(1P×28AWG+A)+(4C×28AWG+A)+(1P×20AWG+A)+AB
BRAID Material Tinned copper
Size 0.10mm,≥90%
JACKET Material PVC
Nom. thickness 0.70mm
Min.thickness at any point 0.63mm
O.D. 9.00±0.30mm



ELECTRICAL CHARACTERISTICS
Rated voltage:30V
Rated temperature:80℃
Max. DC conductor resistance(20℃):
A: 239Ω/km B: 239Ω/km C:37.6Ω/km
Voltage withstand test:AC 0.50kV/1min
Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable 0Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable 1

Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various fields through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.

Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable 2 Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable 3

Certifications

Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable 4

Production Process

Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable 5

Shipping & Logistics

Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable 6

Frequently Asked Questions
What products do you supply?
We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
What certifications do you hold?
We have UL, CE, 3C, Dekra, CQC, TUV, RoHS, Reach, and ETL certificates.
Can we get samples before ordering?
Yes, we are willing to arrange samples for you.
What is your lead time?
Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
How do you guarantee product quality?
We provide pre-production samples before mass production and conduct final inspection before shipment.
Major Customers

Custom made 10 core 28AWG and 2 core 20AWG TPE insulation bio-compatible PVC jacke medical cable 7
