UL 2464 Tinned Copper Stranded Shield Multicore 20 P × 28 AWG SR PVC insulation PVC Jacket 300V 150℃ VW-1 cable
Product Details

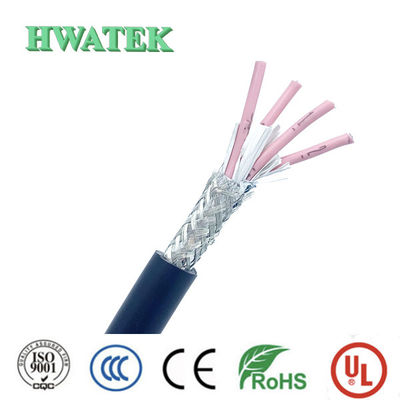

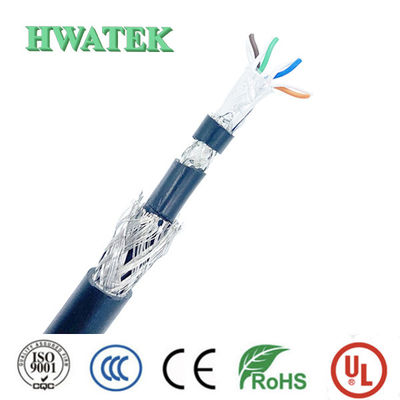

UL 2464 Tinned Copper Stranded Shield Multicore 20 P × 28 AWG SR PVC insulation PVC Jacket 300V 150℃ VW-1 cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : VW-1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 20P×28AWG+WADB | ||||
| CONDUCTOR | Material | Tinned copper stranded | |||
| Size | 7/0.127mm | ||||
| O.D.(Ref) | 0.38mm | ||||
| INSULATION | Material | SR-PVC | |||
| Min.average thickness | 0.23mm | ||||
| Min.thickness at any point | 0.18mm | ||||
| O.D. | 0.90±0.10mm | ||||
| O.D. | 1.80mm | ||||
| CABLING | Filler | Optional | |||
| Material | Non-woven | ||||
| Material | double-sided aluminum foil | ||||
| Drain | Tinned copper stranded,7/0.127mm | ||||
| Assembly | 20P×28AWG+WAD | ||||
| BRAID | Material | Tinned copper | |||
| Size | 0.10mm,≥70% | ||||
| JACKET | Material | Rip cord | |||
| Material | PVC | ||||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 10.10±0.40mm | ||||
Insulation:SR-PVC
Conductor : Tinned copper stranded
Construction
Insulation: 1.white&black 2.white&brown 3.white&red 4.white&orange 5.white&yellow 6.white&green 7.white&blue 8.white&violet
9.white&gray 10.black&brown 11.black&red 12.black&orange 13.black&yellow 14.black&green 15.black&blue 16.black&violet
17.black&gray 18.brown&red 19.brown&orange 20.brown&yellow
Jacket: Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2464, custom-made
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: -35-105℃
Flame: VW-1,FT4
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:300V | |
| Rated temperature:-35-105℃ | |
| Max. DC conductor resistance(20℃):281Ω/km | |
| Voltage withstand test:AC 2.0kV/1min | |
| Flame test:VW-1,FT4 |
| PHYSICAL PROPERTIES | |||
| Tensile strength: | ≥10.3MPa | ||
| Elongation: | ≥100% | ||
| Aged condition: | 113±1℃×168h | ||
| Percent of original tensile strength: | ≥70% | ||
| Percent of original elongation: | ≥65% | ||
