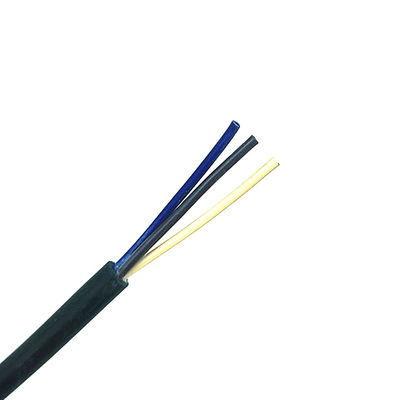

UL20549 Tinned Copper Stranded 2 ×( 1P × 22AWG ) PVC insulation TPU Jacket 300V 80℃ cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
| Conductor |
Tinned Copper stranded |
| Cross section |
22AWG |
| Construction |
19/0.16mm |
| Strand Dia.(Ref.) |
0.80mm |
| Insulation |
PVC |
| Nom.Thickness |
0.23mm |
| Min.Thickness |
0.18mm |
| Insulation Dia. |
1.30±0.08mm |
| Insulation colour |
1.white&blue 2.brown&black |
| Twisted OD.(Ref.) |
2.60mm |
| Material |
Al-mylar(Face out) |
| Drain |
Tinned Copper stranded,19/0.127mm |
| Filler |
Optional |
| Material |
Al-mylar(Face in) |
| Assembly |
2×(1P×22AWG+A)+EA |
| Warping |
Paper tape |
| Jacket |
TPU(89A) |
| Nom.Thickness |
0.76mm |
| Min.Thickness |
0.61mm |
| Outer Dia. |
6.20±0.20mm |
| Colour |
gray |
Insulation:PVC
Conductor : Tinned copper stranded
Construction
Insulation: 1.white&blue 2.brown&black
Jacket Color : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL20549, custom-made
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: '-40~80℃
Voltage withstand test:AC 0.5kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Mechanical Performance |
| |
Jacket |
| Material |
TPU |
| Tensile strength |
≥10.3MPa |
| Elongation |
≥100% |
| Aged condition |
113±1℃×168h |
| Percent of original tensile strength |
≥70% |
| Percent of original elongation |
≥65% |
| Flame:IEC60332-1-2 |
