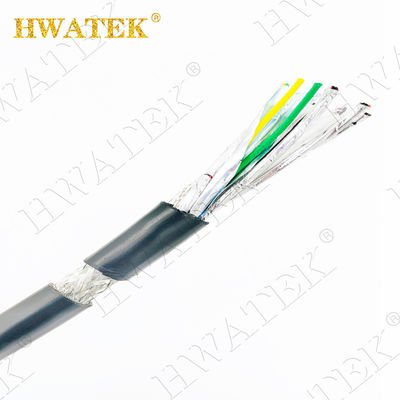

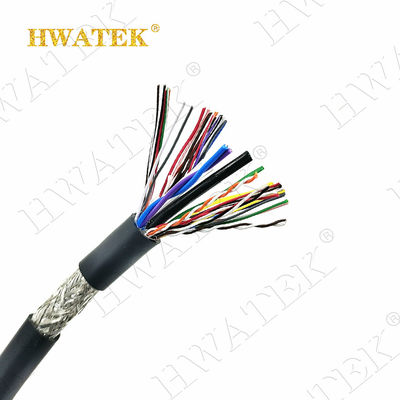

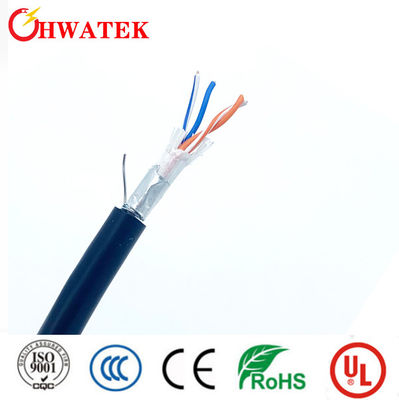

UL2586 Tinned Copper Stranded 12 ×(1P×20AWG) PVC insulation PVC Jacket 1000V 105℃ high voltage cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:136±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM |
A : 12×(1P×20AWG+EA) |
| CONDUCTOR |
Material |
Tinned copper stranded |
| Size |
26/0.16mm |
| O.D.(Ref) |
0.94mm |
| INSULATION |
Material |
PVC |
| Min.average thickness |
0.76mm |
| Min.thickness at any point |
0.69mm |
| O.D. |
2.60±0.10mm |
| TWISTED |
O.D.(Ref) |
5.20mm |
| Drain wire |
Tinned copper,26/0.16mm |
| Material |
Al-mylar(FACE IN) |
| CABLING |
Filler |
Optional |
| Material |
Al-mylar |
| Assembly |
12×(1P×20AWG+EA)+A |
| JACKET |
Material |
PVC |
| Min.average thickness |
1.52mm |
| Min.thickness at any point |
1.22mm |
| O.D. |
21.00±1.00mm |
Insulation:PVC
Conductor : Tinned copper stranded
Construction
Insulation: A1.black&brown A2.black&red A3.black&orange A4.black&yellow A5.black&green A6.black&blue A7.black&violet A8.black&gray A9.black&white A10.white&brown A11.white&red A12.white&red
Jacket Color : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2586
RoHS,REACH Compliant,
Technical data
Rated voltage:1000V
Rated Temperature: 105℃
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Mechanical Performance |
| Jacket |
| Material |
PVC |
| Tensile strength |
≥10.3MPa |
| Elongation |
≥100% |
| Aged condition |
136±1℃×168h |
| Percent of original tensile strength |
≥70% |
| Percent of original elongation |
≥65% |
