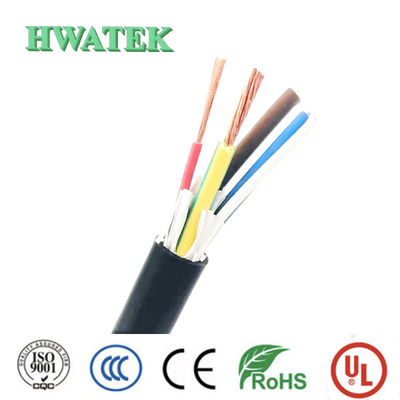

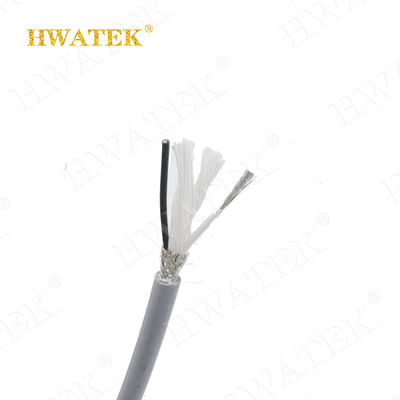

UL2501 Tinned Copper Stranded 2C×18AWG PVC insulation PVC Jacket UV resistant Oil resistant 600V 105℃ high voltage cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:136±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM |
2C×18AWG+WADB |
| CONDUCTOR |
Material |
Tinned copper stranded |
| Size |
16/0.254mm |
| O.D.(Ref) |
1.16mm |
| INSULATION |
Material |
PVC |
| Min.average thickness |
0.76mm |
| Min.thickness at any point |
0.69mm |
| O.D. |
2.80±0.15mm |
| CABLING |
Filler |
Optional |
| Material |
Non-woven |
| Material |
double-sided aluminum foil |
| Drain |
Tinned copper stranded,16/0.254mm |
| Pitch |
3.7twists/ft |
| Assembly |
2C×18AWG+WAD |
| BRAID |
Material |
Tinned copper |
| Size |
0.10mm,≥70% |
| JACKET |
Material |
Rip cord |
| Material |
PVC(UV resistant) |
| Min.average thickness |
0.76mm |
| Min.thickness at any point |
0.61mm |
| O.D. |
7.00±0.30mm |
Insulation:PVC
Conductor : Tinned copper stranded
Construction
Insulation: 1.black 2.brown
Jacket Color : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2501
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: -30-105℃
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS |
| Rated voltage:600V |
| Rated temperature:-30-105℃ |
| Max. DC conductor resistance(20℃):14.6Ω/km |
| Voltage withstand test:AC 2.0kV/1min |
| Flame test:VW-1,FT4,IEC60332-1-2 |
| PHYSICAL PROPERTIES |
| Tensile strength: |
≥10.3MPa |
| Elongation: |
≥100% |
| Aged condition: |
136±1℃×168h |
| Percent of original tensile strength: |
≥70% |
| Percent of original elongation: |
≥65% |
| Bending radius:10×OD |
| Oil-resistant:60℃×4H,Residual elongation rate≥50% |
|
|
|
| Tensile residual rate:≥50% |
