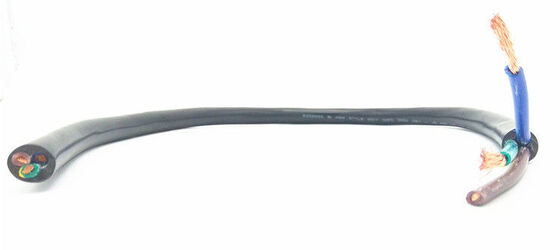

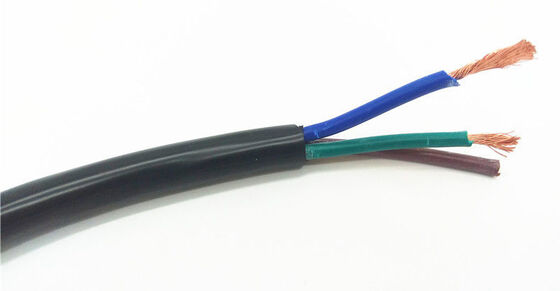

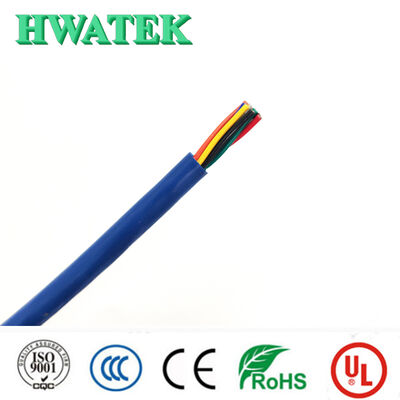

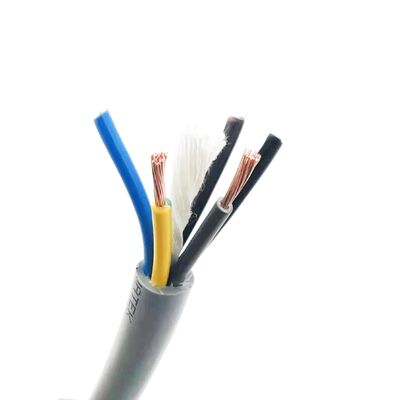

UL20940 PUR Sheath Screened Multicore Flexible Control Copper Wire Cable
Cable Construction
Conductor: Stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC, SRPVC, PP, TPEE
Shield or Braid: Bare or tinned copper braid
Jacket: PUR (Polyurethane)
Compliance Standards
International: UL758, UL1581, UL2556
RoHS, REACH Compliant
Technical Specifications
| Parameter |
Specification |
| Rated Voltage |
600V |
| Temperature Range |
-40ºC to +80ºC |
| Flame Rating |
VW-1, FT1, FT2 |
| Oil Resistance |
60ºC or 80ºC Oil |
| Voltage Withstand Test |
AC 2.5kV/1min |
| Printing |
E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK
Note: "XX" represents AWG Number |
Key Properties
- Extensively oil resistant
- Conditional drag chain compatible
- Conditional suitability for torsion applications
- Low temperature performance
- Self-extinguishing and flame retardant
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system, operating under the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certifications
Production Progress
Shipping & Logistics
Frequently Asked Questions
Q: What products do you supply?
A: We manufacture consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certifications do you hold?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certifications.
Q: Can we get samples before ordering?
A: Yes, we are happy to arrange samples for your evaluation.
Q: What is your lead time?
A: Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We always provide pre-production samples before mass production and conduct final inspection before shipment.
