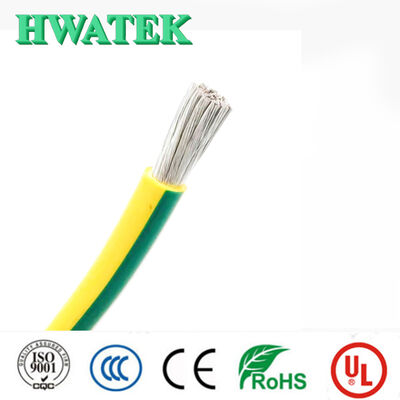

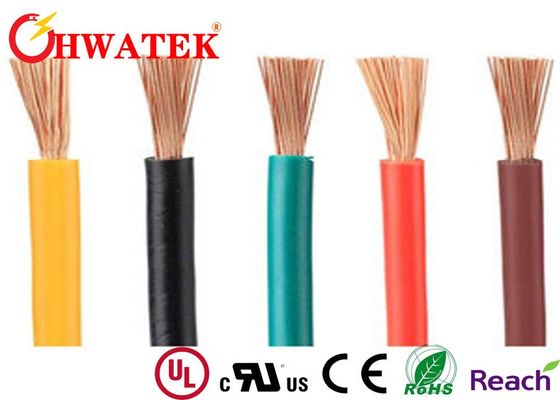

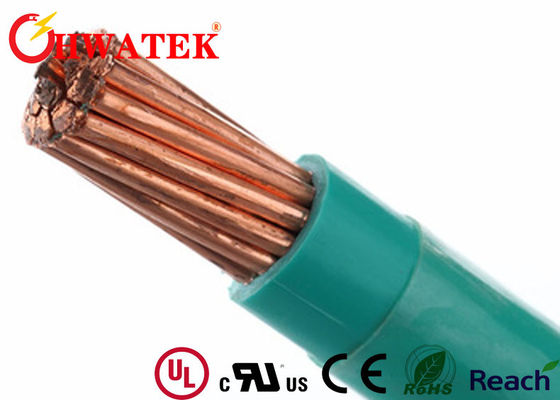

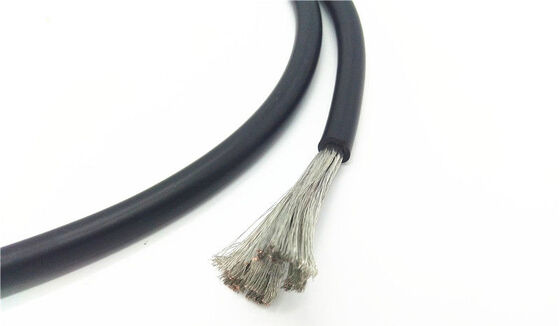

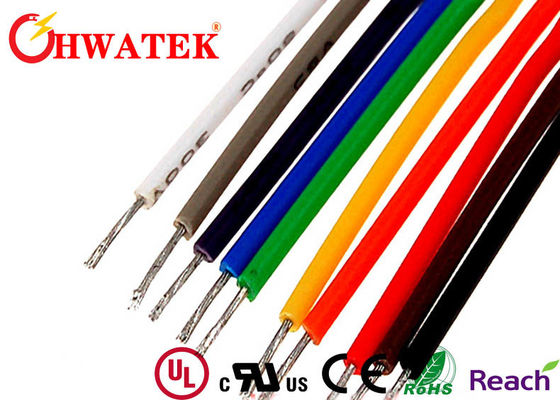

UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
Product Details
UL1568 Bare Copper Stranded Single Core Industrial Flexible Cable with PVC Insulation
| Construction | ||||
| Conductor | Bare copper stranded | |||
| Cross section | 28AWG | |||
| Construction | 42/0.05mm | |||
| Strand Dia.(Ref) | 0.37mm | |||
| Insulation | PVC | |||
| Nom.Thickness | 0.23mm | |||
| Min.Thickness | 0.18mm | |||
| Insulation Dia. | 0.90±0.08mm | |||
| Insulation colour | Per request | |||
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
Insulation:PVC
Conductor : Bare copper stranded
Insulation color: Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL1568
RoHS
Technical data
Rated voltage:150V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):239Ω/km
Dielectric Strength AC:1.5KV/1min
| Mechanical Performance | ||||||
| Insulation | ||||||
| Material | PVC | |||||
| Tensile strength | ≥10.3MPa | |||||
| Elongation | ≥100% | |||||
| Aged condition | 113±1℃×168h | |||||
| Percent of original tensile strength | ≥70% | |||||
| Percent of original elongation | ≥65% | |||||
