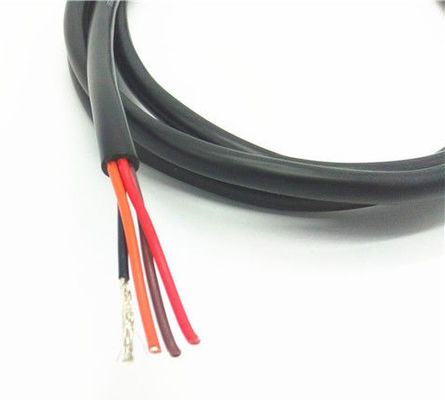

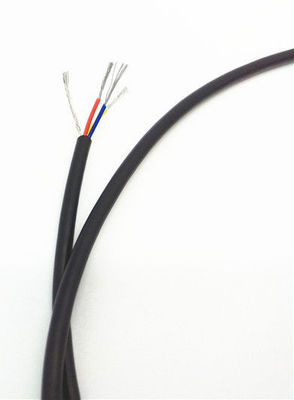

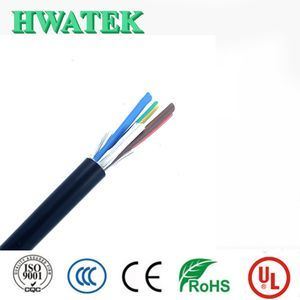

UL2464 Tinned Copper Stranded 1P×28AWG+2C×20AWG+ADB with PVC/PE Insulation PVC Jacket
| Construction |
| |
A:1P×28AWG |
B:2C×20AWG |
| Conductor |
Tinned copper stranded |
| Cross section |
28AWG |
20AWG |
| Construction |
7/0.127mm |
26/0.16mm |
| Strand Dia.(Ref.) |
0.38mm |
0.94mm |
| Insulation |
PE |
PVC |
| Nom.Thickness |
0.23mm |
0.23mm |
| Min.Thickness |
0.18mm |
0.18mm |
| Insulation Dia. |
0.85±0.08mm |
1.50±0.10mm |
| Insulation colour |
A.white&green |
B1.red B2.black |
| Twisted |
1.70mm nom. |
/ |
| Filler |
Optional |
| Material |
Al-mylar(FACE OUT) |
| Drain |
Tinned copper stranded,7/0.127mm |
| Assembly |
1P×28AWG+2C×20AWG+AD |
| Braid |
Tinned copper |
| Size |
0.10mm,≥85% |
| Jacket |
PVC |
| Nom.Thickness |
0.76mm |
| Min.Thickness |
0.61mm |
| Outer Dia. |
5.40±0.20mm |
| Colour |
black |
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
UL758-E258652-20060111A-CertificateofCompliance(2)...
UL758-E258652-20110513B-CertificateofCompliance (3...
Insulation:PVC,PE
Conductor : Tinned copper stranded
Construction
Insulation: A.white&green B1.red B2.black
Jacket Color : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2464
RoHS
Technical data
Rated voltage:300V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):A:239Ω/km B:36.7Ω/km
Dielectric Strength AC:2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Flame retardance
Flexible
| Mechanical Performance |
| Jacket |
| Material |
PVC |
| Tensile strength |
≥10.3MPa |
| Elongation |
≥100% |
| Aged condition |
113±1℃×168h |
| Percent of original tensile strength |
≥70% |
| Percent of original elongation |
≥65% |
| Flame test |
VW-1 FT1 |
