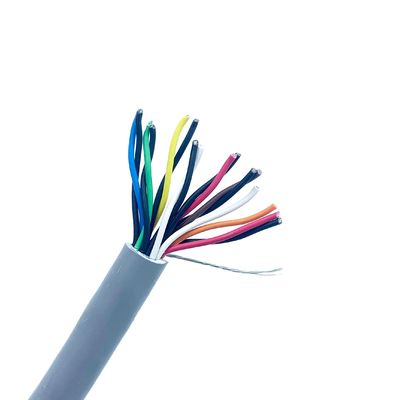

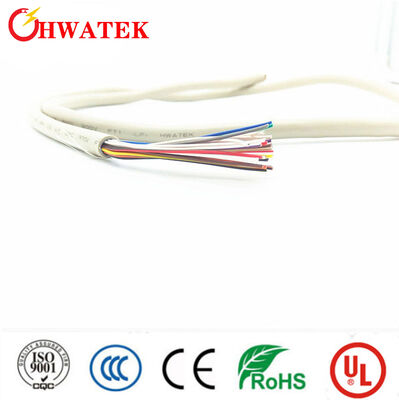

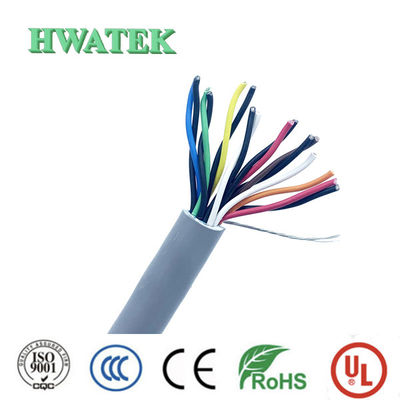

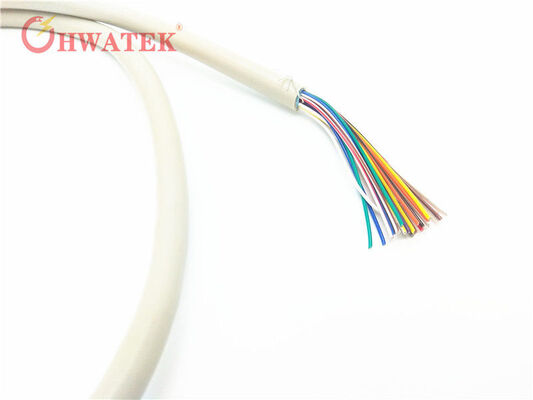

UL2468 Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket 15C×24AWG+ADB
| Construction |
| Conductor |
Tinned copper stranded |
| Cross section |
24AWG |
| Construction |
7/0.20mm |
| Strand Dia. |
0.60mm |
| Insulation |
SR-PVC |
| Nom.Thickness |
0.23mm |
| Min.Thickness |
0.18mm |
| Insulation Dia. |
1.10±0.10mm |
| Insulation colour |
1.black 2.brown 3.red 4.orange 5.yellow 6.green 7.blue 8.violet 9.gray 10.white 11.pink 12.light green 13.black/white 14.brown/white 15.red/white |
| Material |
Al-Mylar(Face out),≥25% |
| Filler |
Optional |
| Drain |
Tinned copper stranded 7/0.20mm |
| Assembly |
15C×24AWG+AD pitch 75mm S |
| Braid |
Tinned copper,16/10/0.127mm,≥85% |
| Jacket |
PVC |
| Nom.Thickness |
0.76mm |
| Min.Thickness |
0.61mm |
| O.D. |
7.40±0.30mm |
| Colour |
black
|
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
Insulation:SR-PVC
Conductor : Tinned copper stranded
Construction
Insulation: 1.black 2.brown 3.red 4.orange 5.yellow 6.green 7.blue 8.violet 9.gray 10.white 11.pink 12.light green 13.black/white 14.brown/white 15.red/white
Jacket Color : black
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2468
RoHS
Technical data
Rated voltage:300V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):94.2Ω/km
Dielectric Strength AC:2.0kV/3min
Insulation resistance(20℃):10MΩ·km 500V DC
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
