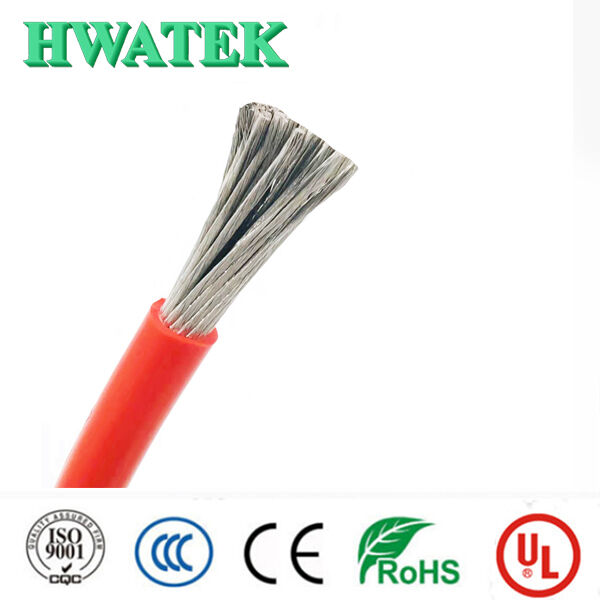

UL3132, 3133 Data Center Silicone Rubber (SR) Electric Power Wire Cable
| Construction |
Mechanical Performance |
|
| Conductor |
Bare Copper Stranded |
|
Insulation |
| Cross section |
14AWG |
Material |
SR |
| Construction |
41/0.254mm |
Tensile strength |
≥3.45MPa |
| Strand Dia. |
1.88mm(Ref) |
Elongation |
≥100% |
| Insulation |
SR(halogen free) |
Aged condition |
158±1ºC×60D |
| Nom.Thickness |
0.51mm |
Percent of original tensile strength |
≥60% |
| Min.Thickness |
0.46mm |
Percent of original elongation |
≥25% |
| Insulation Dia. |
3.60±0.20mm |
Min. bend radius |
5×OD |
| Insulation colour |
Per request |
Flame |
VW-1 |
|
Electric Performance |
|
| Rated Temperature |
-40~150ºC |
| Voltage rating |
300V |
| Max.conductor DC resistance(20ºC) |
8.62Ω/km |
| Dielectric Strength AC |
2.0kV/1min |
Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.
Our Competence at
1. Produce Cables with Following Insulation & Jacket PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP Etc.
2. Produce Cables with Temperature Range from -40 to 200 Degree Temperature.
3. Produce Cables with Volatge Range from 30V to 1200V DC.
4. Flamability Rating - VW-1, FT1, FT2.
5. We have 300 Plus different UL Style approval from UL Authority.
6. QMS Certification- ISO9001-2015, IATF16949-2016, ISO13485-2016.
7. Product Certification -CCC, UL, CSA, ETL, CE.
8. We can support drop-in equivalent to any Brand of Cables and Custom made Cables.
Production Progress
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
