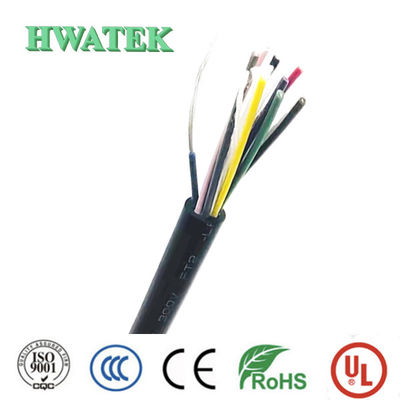

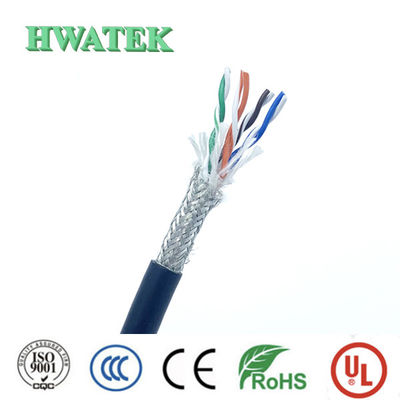

UL21394 Tinned Copper Stranded Cable with PE Insulation and TPE Jacket ( 1P × 22AWG + A )×2+2C×16AWG cable
| Construction |
| Conductor |
Tinned copper stranded |
| Cross section |
A:2P×22AWG |
B:2C×16AWG |
| Construction |
7/0.254mm |
26/0.254mm |
| Strand Dia. |
0.76mm |
1.49mm |
| Insulation |
Foam PE(-10~80℃) |
PE(-30~80℃) |
| Nom.Thickness |
0.80mm |
0.23mm |
| Insulation Dia. |
2.40±0.20mm |
2.10±0.15mm |
| Insulation colour |
A1.blue&white A2.black&red |
B1.red B2.black |
| Twisted |
4.80mm |
/ |
| Wrapping |
Al-mylar(facing out) |
|
| Filler |
Optional |
| Drain |
Tinned copper stranded,7/0.254mm |
| Assembly |
(1P×22AWG+A)×2+2C×16AWG+D |
| Braid |
Tinned copper |
| Size |
0.12mm,≥85% |
| Jacket |
TPE(-30~80℃) |
| Nom.Thickness |
0.76mm |
| Min.Thickness |
0.61mm |
| Outer Dia. |
9.80±0.25mm |
| Colour |
Black |
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥8.27 MPa Elongation:≥200%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥75%
Percent of original elongation: ≥75%
UL758 -E258652-20060111-CertificateofCompliance-1....
Insulation:PE
Conductor : Tinned copper stranded
Construction
Insulation:A1.blue&white A2.black&red
Jacket Color : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL type
RoHS
Halogen-free
VW-1
Technical data
Rated voltage:30V
Rated Temperature:80℃
Max.conductor DC resistance(20℃):14.7Ω/km
Dielectric Strength AC:0.5 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
Flexible
| Mechanical Performance |
| Material |
TPE |
| Tensile strength |
≥8.27MPa |
| Elongation |
≥200% |
| Aged condition |
113±1℃×168h |
| Percent of original tensile strength |
≥75% |
| Percent of original elongation |
≥75% |
| Heat shock test : No cracking |
|
| Cold bend test: No cracking |
|
| Deformation test: MAX 50% |
|
| Flame test: PASSED UL VW-1 |
|
