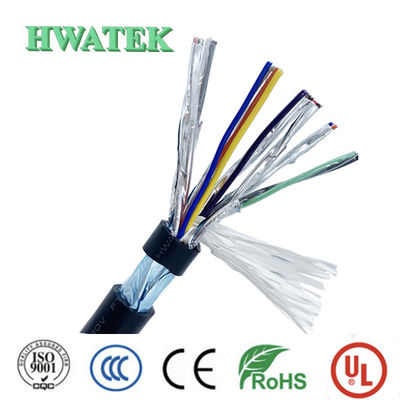

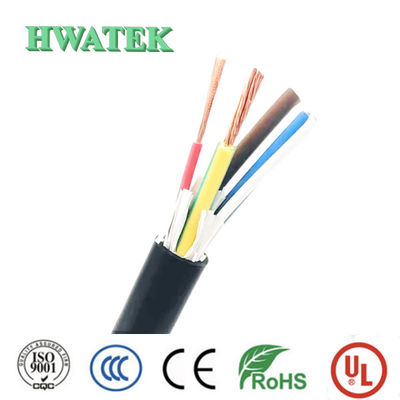

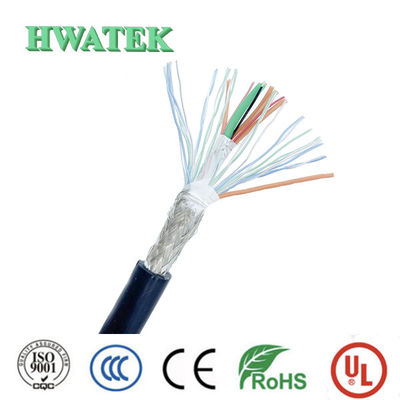

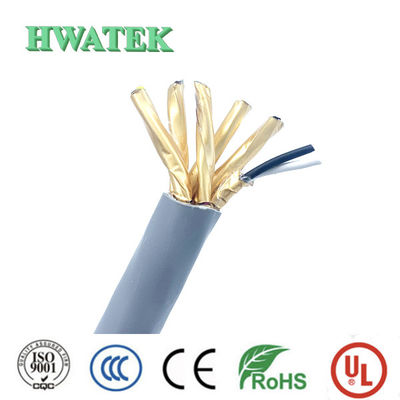

UL type 3C 18AWG Braiding Shiled Bare Copper Stranded PVC 300V 105℃ CSA STV/SJT cable

UL type 3C 18AWG Braiding Shiled Bare Copper Stranded PVC 300V 105℃ CSA STV/SJT cable

Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:

Tensile strength:≥10.3MPa Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥85%

Percent of original elongation: ≥45%

UL758 -E258652-20060111-CertificateofCompliance-1....

Insulation:PVC
Conductor : Bare copper stranded
Construction
Insulation:1.Blue 2.Brown 3.yellow/green
Jacket Color : Per request

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International:UL SJT
RoHS

Flame:VW-1,FT-1,IEC60332-1

Technical data
Rated voltage:300V
Rated Temperature:105℃
Max.conductor DC resistance(20℃):22.4Ω/km
Dielectric Strength AC:2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively Flame resistant
Flexible

Mechanical Performance
Material					PVC
Tensile strength					≥10.3MPa
Elongation					≥100%
Aged condition					136±1℃×168h
Percent of original tensile strength					≥85%
Percent of original elongation					≥45%
Flame VW-1
