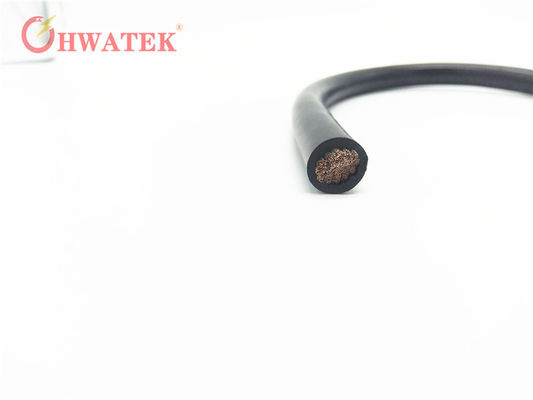

Single Core Flexible Copper Wire PVC Insulation UL1185 For Appliances Wiring

Single Core Flexible Copper Wire PVC Insulation UL1185 For Appliances Wiring
Single Core Flexible Copper Wire PVC Insulation UL1185 For Appliances Wiring Single Core Flexible Copper Wire PVC Insulation UL1185 For Appliances Wiring Single Core Flexible Copper Wire PVC Insulation UL1185 For Appliances Wiring

Large Image :  Single Core Flexible Copper Wire PVC Insulation UL1185 For Appliances Wiring

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL1185
Detailed Product Description
Product Name: UL1185 Size: 30AWG - 4/0AWG
Conductor: Solid Or Stranded, Tinned Or Bare Copper. Core Number: 1core
Standard: UL758,UL1581, UL2556 Insulation Material: PVC
Sheath Material: PVC Application: Internal Wiring Of Appliances And Electronic Equipment.
Rated Voltage: 300V Temperature: 80℃
Flame: VW-1,FT1,FT2 Free Sample: YES
Highlight:

single conductor wire

,

single core insulated wire

UL1185 Single conductor using extruded non-integral jacket, 80 ℃, 300 V VW-1, 60 ℃ or 80 ℃ Oil

Single Core Flexible Copper Wire PVC Insulation UL1185 For Appliances Wiring 0

Construction

Conductor : Solid or Stranded
Insulation: PVC

Jacket: PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:300 V
Rated  Temperature:80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652 Single Core Flexible Copper Wire PVC Insulation UL1185 For Appliances Wiring 1   AWM STYLE 1185 AWGXX 80℃ 300V VW-1 ---c AWM I A/B 80℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
