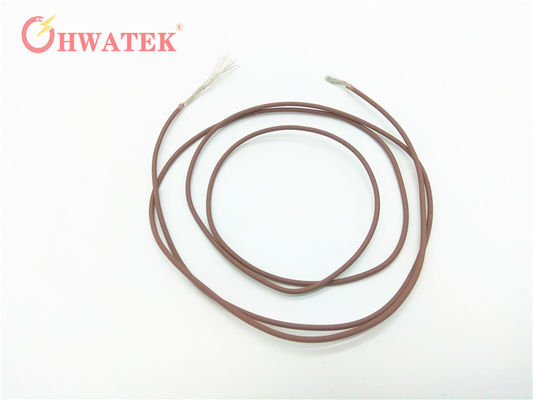

PVC Insulated UL1284 Single Core Flexible Cable For Internal Wiring 8AWG - 1000kcmil
Basic Properties
Brand Name:
HWATEK
Certification:
UL,CUL, CE,ROHS, REACH
Model Number:
UL1284
Product Summary
UL1284 Single Conductor with Extruded Insulation, 105 ℃, 600 V , VW-1,60 ℃ or 80 ℃ Oil Construction Conductor :solid or stranded round Insulation: PVC Standards International: UL758 , UL1581, UL2556 RoHS,REACH Compliant, Technical data Rated voltage:600V Rated Temperature:105℃ Flame: VW-1, FT1, FT2 ...
Product Details
Highlight:
single conductor wire
,single core insulated wire
Product Name:
UL1284
Size:
8AWG - 1000kcmil
Conductor:
Solid Or Stranded Round
Core Number:
1core
Standard:
UL758,UL1581, UL2556
Insulation Material:
PVC
Application:
Internal Wiring
Rated Voltage:
600V
Temperature:
105℃
Flame:
VW-1,FT1,FT2
Free Sample:
YES
Product Description
UL1284 Single Conductor with Extruded Insulation, 105 ℃, 600 V , VW-1,60 ℃ or 80 ℃ Oil
Construction
Conductor :solid or stranded round
Insulation: PVC
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Voltage withstand test:AC 2.5kV/1min
Printing :E258652 AWM STYLE 1284 AWGXX 105℃ 300V VW-1 ---c AWM I A/B 105℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.
Specifications
Certificates
UL, CUL, CE
Packing and Shipping
- The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
- If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
- Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
- The cargo, manufacturer, packing details will be labeled on the outer packing;
- About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
- Shipping term, It depends on the value of the goods and the will of the customer.
