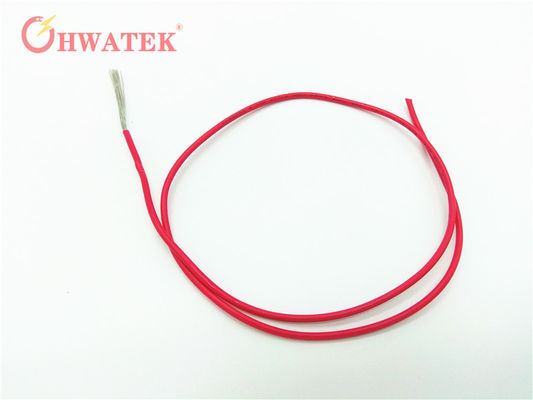

UL3321 Single Conductor Cable Flexible Cable Wire With Extruded XLPE Insulation
Basic Properties
Brand Name:
HWATEK
Certification:
UL,CUL, CE,ROHS, REACH
Model Number:
UL3321
Trading Properties
Minimum Order Quantity:
6.1KM
Price:
Negotiable
Standard Packaging:
carton/pallet
Delivery Time:
2-3W
Payment Terms:
T/T
Product Summary
UL3321 Single Conductor with extruded XLPE insulation, 150 ℃, 600 V or 750V VW-1 Construction Conductor : Solid or Stranded Insulation: XLPE Standards International: UL758 , UL1581, UL2556 RoHS,REACH Compliant, Technical data Rated voltage: 600 V OR 750V Rated Temperature: 150℃ Flame: VW-1, FT1, FT2 ...
Product Details
Highlight:
single core insulated wire
,single conductor shielded cable
Product Name:
UL3321
Size:
30 AWG - 4/0 AWG
Conductor:
Solid Or Stranded, Tinned Or Bare Copper.
Core Number:
1core
Standard:
UL758,UL1581, UL2556
Insulation Material:
XLPE
Application:
Internal Wiring Of Appliances
Rated Voltage:
600V OR 750V
Temperature:
150℃
Flame:
VW-1,FT1,FT2
Free Sample:
YES
Product Description
UL3321 Single Conductor with extruded XLPE insulation, 150 ℃, 600 V or 750V VW-1
Construction
Conductor : Solid or Stranded
Insulation: XLPE
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage: 600 V OR 750V
Rated Temperature: 150℃
Flame: VW-1, FT1, FT2
Voltage withstand test:AC 2.5kV/1min
Printing :E258652 AWM STYLE 3321 AWGXX 150℃ 600V VW-1 ---c AWM I A/B 150℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.
Specifications
Certificates
UL, CUL, CE
Packing and Shipping
- The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
- If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
- Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
- The cargo, manufacturer, packing details will be labeled on the outer packing;
- About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
- Shipping term, It depends on the value of the goods and the will of the customer.
