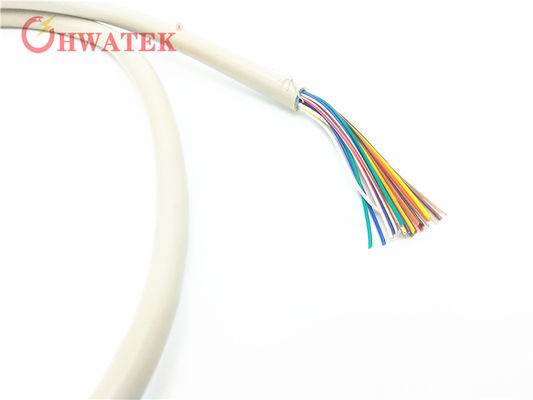

Tinned / Bare Copper Multi Conductor Cable , PVC Flexible Electrical Cable UL2586
Basic Properties
Brand Name:
HWATEK
Certification:
UL,CUL, CE,ROHS, REACH
Model Number:
UL2586
Trading Properties
Minimum Order Quantity:
6.1KM
Price:
Negotiable
Standard Packaging:
carton/pallet
Delivery Time:
2-3W
Payment Terms:
T/T
Product Summary
UL2586 Multiple-conductor cable using non-integral jacket, 105 ℃, 600V or 1000V VW-1, 60 ℃ or 80 ℃ Oil Construction Conductor : Solid or Stranded Insulation: PVC,PE, SRPVC, PP Shield or Braid: Optional Jacket: PVC Standards International: UL758 , UL1581, UL2556 RoHS,REACH Compliant, Technical data ...
Product Details
Highlight:
flexible multi conductor cable
,multi conductor wire
Product Name:
UL2586
Size:
40AWG MIN
Conductor:
Solid Or Stranded, Tinned Or Bare Copper.
Core Number:
Multiple-core
Standard:
UL758,UL1581, UL2556
Insulation Material:
PVC，PE, SRPVC, PP
Shield Material:
Copper, AL-Mylar, Tinned Copper
Sheath Material:
PVC
Application:
External Interconnection Or Internal Wiring Of Electronic Equipment
Rated Voltage:
600V Or 1000V
Temperature:
-40℃-105℃
Flame:
VW-1,FT1,FT2
Free Sample:
YES
Product Description
UL2586 Multiple-conductor cable using non-integral jacket, 105 ℃, 600V or 1000V VW-1, 60 ℃ or 80 ℃ Oil
Construction
Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP
Shield or Braid: Optional
Jacket: PVC
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:600V or 1000V
Rated Temperature:-40℃-105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Voltage withstand test:AC 3.5kV/1min
Printing :E258652 AWM STYLE 2586 AWGXX 105℃ 600V VW-1 ---c AWM I A/B 105℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.
Specifications
Certificates
UL, CUL, CE
Packing and Shipping
- The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
- If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
- Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
- The cargo, manufacturer, packing details will be labeled on the outer packing;
- About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
- Shipping term, It depends on the value of the goods and the will of the customer.
