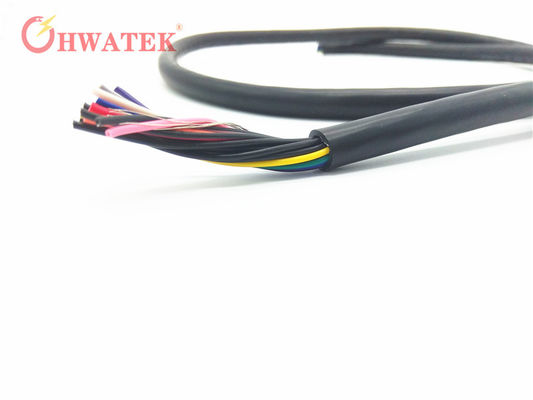

PUR Jacket Flexible Stranded Wire Power Cable UL20317 With 2 - 8 Conductor Oil Resistant

Basic Properties
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL20317
Trading Properties
Minimum Order Quantity: 6.1KM
Price: Negotiable
Standard Packaging: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Tags

multi conductor wire

multi conductor power cable

flexible multi conductor cable
Product Summary
UL20317 Multiple-conductor cable using PUR jacket, 80 ℃, 300 V VW-1, 60 ℃ or 80 ℃ Oil Construction Conductor : Solid or Stranded Insulation: PVC,PE, SRPVC, PP, FOAM-PE ,TPE Shield or Braid: Optional Jacket: PUR Standards International: UL758 , UL1581, UL2556 RoHS,REACH Compliant, Technical data ...

Product Details

Highlight:

flexible multi conductor cable

,

multi conductor wire
Product Name: UL20317
Size: 36AWG MIN
Conductor: Solid Or Stranded, Tinned Or Bare Copper.
Core Number: Two To Eight Insulated Conductors Laid Flat Or Two Or More Twisted Singles Or Groups Of Twisted Singles, May Be Twisted Together Or Groups May Be Laid Parallel To Form Flat, Oval Or Round Cable.
Standard: UL758,UL1581, UL2556
Insulation Material: PVC，PE, SRPVC, PP, FOAM-PE, TPE
Shield Material: Copper, AL-Mylar, Tinned Copper
Sheath Material: PUR
Application: Internal Wiring Of Electronic Equipment And Appliances
Rated Voltage: 300V
Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2
Free Sample: YES
Product Description

UL20317 Multiple-conductor cable using PUR jacket, 80 ℃, 300 V VW-1, 60 ℃ or 80 ℃ Oil



Construction

Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP, FOAM-PE ,TPE

Shield or Braid: Optional

Jacket: PUR



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:300 V
Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652 PUR Jacket Flexible Stranded Wire Power Cable UL20317 With 2 - 8 Conductor Oil Resistant   AWM STYLE 20317 AWGXX 80℃ 300V VW-1 ---c AWM I A/B 80℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
