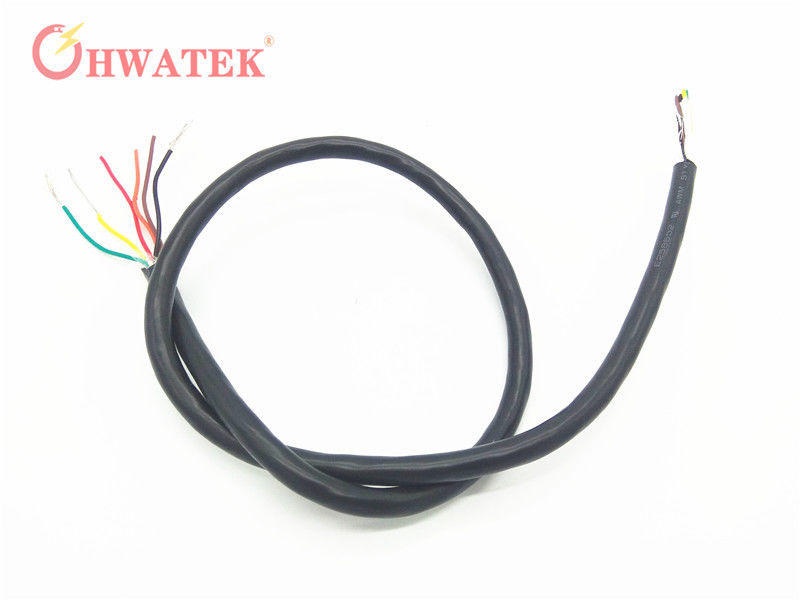

Customized Multi Conductor Copper Flexible Cable XLPE Insulation UL21408
Basic Properties
Brand Name:
HWATEK
Certification:
UL,CUL, CE,ROHS, REACH
Model Number:
UL21408
Trading Properties
Minimum Order Quantity:
6.1KM
Price:
Negotiable
Standard Packaging:
carton/pallet
Delivery Time:
2-3W
Payment Terms:
T/T
Product Summary
UL21408 Multiple-conductor cable using XLPE jacket, 105℃, 300V VW-1 Construction Conductor : Solid or Stranded Insulation: XLPE,PVC, TPE Shield or Braid: Optional Jacket: XLPE Standards International: UL758 , UL1581, UL2556 RoHS,REACH Compliant, Technical data Rated voltage:300V Rated Temperature:...
Product Details
Highlight:
multi conductor power cable
,multi conductor wire
Product Name:
UL21409
Size:
40 AWG Min
Conductor:
Copper Or Tinned Copper
Core Number:
Two Or More Singles, Twisted Pairs Or Groups Of Twisted Singles Twisted Together Or Singles Or Groups Of Singles May Be Laid Parallel To Form Flat, Oval, Or Round Cables
Standard:
UL758,UL1581, UL2556
Insulation Material:
XLPE, PVC, TPE
Shield Material:
Copper, AL-Mylar, Tinned Copper
Sheath Material:
XLPE
Application:
External Interconnection Or Internal Wiring Of Electronic Equipment
Rated Voltage:
300V
Temperature:
-40℃-105℃
Flame:
VW-1,FT1,FT2
Free Sample:
YES
Product Description
UL21408 Multiple-conductor cable using XLPE jacket, 105℃, 300V VW-1
Construction
Conductor : Solid or Stranded
Insulation: XLPE,PVC, TPE
Shield or Braid: Optional
Jacket: XLPE
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature:-40℃-105℃
Flame: VW-1, FT1, FT2
Voltage withstand test:AC 2.5kV/1min
Printing :E258652 AWM STYLE 21408 AWGXX 105℃ 300V VW-1 ---c AWM I A/B 105℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.
Specifications
Certificates
UL, CUL, CE
Packing and Shipping
- The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
- If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
- Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
- The cargo, manufacturer, packing details will be labeled on the outer packing;
- About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
- Shipping term, It depends on the value of the goods and the will of the customer.
