Product Name: | TC-ER, Aluminum , XLPE Power Cable, 90°C, 600V | Size: | Conductor Sizes 12 AWG To 1000 Kcmil Aluminum |
---|---|---|---|
Conductor: | Aluminum | Core Number: | Multiple-core |
Standard: | UL1277,UL44 | Insulation Material: | XLPE |
Shield Material: | Copper, AL-Mylar, Tinned Copper | Sheath Material: | XLPE |
Application: | ANSI/NFPA 70 Conformant Flexible Power Cables Up To 600 V, For All Machinery In Tool And Plant Constuction, Suitable For Installation In Dry, Humid And Damp Environments, In The Open And In Pipes. For Underground Installation And For Open, Unprotected Inst | Rated Voltage: | 600V |
Temperature: | -40℃-90℃ | Flame: | FT4, VW-1 FT1, FT2 |
Free Sample: | YES | ||
Highlight: | multi conductor tray cable,power and control tray cable type tc |

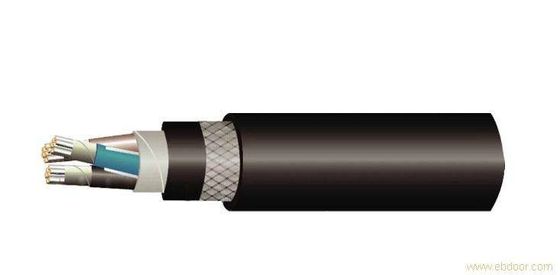

TC-ER, Aluminum , XLPE power cable, 90°C, 600V, ANSI/NFPA 70
Construction
Conductor :Aluminum Solid or Stranded
Insulation: XLPE
Shield or Braid: Optional
Jacket: XLPE
Standards
International: UL1277,UL Std.44 and CSA C22.2 No 210 I/II A/B 90C 600 V
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:-40℃-90℃
Flame: FT4,VW-1 FT1, FT2
a. High mechanical property
b. Sunlight resistant, heat resistant, moisture resistant
c. Crush resistant, environmental stress cracking resistant
Voltage withstand test:AC 2.0kV/1min
Printing :E489601 (UL) TYPE TC-ER AL XXC-XXAWG 90℃ DRY OR WET 600V SUN RES HWATEK
Note: Where "XX" means AWG No.
Specifications
Certificates
UL, CE
