Industrial UL2461 Hook Up Flexible Power Cable with 2 / 3 / 4 / 5 Conductor Available

Industrial UL2461 Hook Up Flexible Power Cable with 2 / 3 / 4 / 5 Conductor Available
Industrial UL2461 Hook Up Flexible Power Cable with 2 / 3 / 4 / 5 Conductor Available Industrial UL2461 Hook Up Flexible Power Cable with 2 / 3 / 4 / 5 Conductor Available Industrial UL2461 Hook Up Flexible Power Cable with 2 / 3 / 4 / 5 Conductor Available

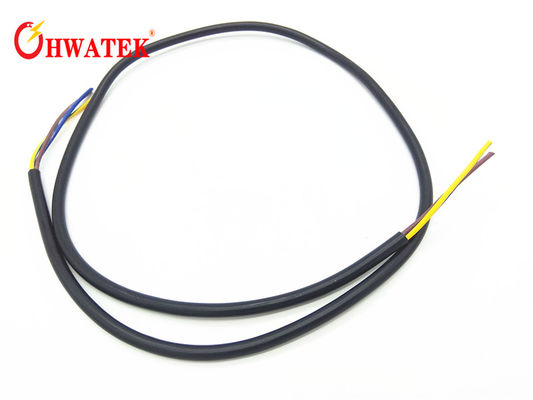

Large Image :  Industrial UL2461 Hook Up Flexible Power Cable with 2 / 3 / 4 / 5 Conductor Available

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL2461
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL2461 Size: 40AWG MIN
Conductor: Solid Or Stranded, Tinned Or Bare Copper. Core Number: Two Or More Singles, Twisted Pairs Of Groups Of Twisted Singles Twisted Together Or Singles Or Groups Of Singles May Be Laid Parallel To Form Flat, Oval Or Round Cable.
Standard: UL758,UL1581, UL2556 Insulation Material: PVC,PE, SRPVC, PP, FOAM-PE
Shield Material: Copper, AL-Mylar, Tinned Copper Sheath Material: PVC
Application: Internal Wiring Of Electronic Equipment And Appliances Rated Voltage: 300V
Temperature: -40℃-80℃ Flame: VW-1,FT1,FT2
Free Sample: YES
High Light:

flexible hook up wire

,

pvc hook up wire

UL2461 Multiple-conductor cable using non-integral jacket, 80 ℃, 300 V VW-1, 60 ℃ or 80 ℃ Oil



Construction

Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP, FOAM-PE

Shield or Braid: Optional

Jacket: PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:300 V
Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652 Industrial UL2461 Hook Up Flexible Power Cable with 2 / 3 / 4 / 5 Conductor Available 0   AWM STYLE 2461 AWGXX 80℃ 300V VW-1 ---c AWM I A/B 80℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
