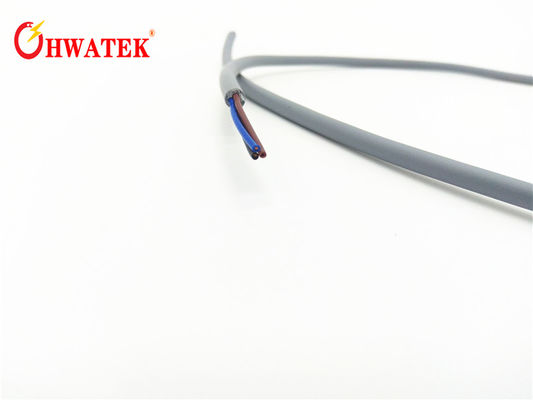

UL21394 Multiple-conductor cable using TPE jacket, 80℃, 30V VW-1, 60℃ Oil

Basic Properties
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL21394
Trading Properties
Minimum Order Quantity: 6.1KM
Price: Negotiable
Standard Packaging: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Tags

electric hook up cable

flexible hook up wire

pvc hook up wire
Product Summary
UL21394 Multiple-conductor cable using TPE jacket, 80℃, 30V VW-1, 60℃ Oil Construction Conductor : Solid or Stranded Insulation: PVC,PE,PP,FOAM-PE, SRPVC, XLPE Shield or Braid: Optional Jacket: TPE Standards International: UL758 , UL1581, UL2556 RoHS,REACH Compliant, Technical data Rated voltage:30V ...

Product Details

Highlight:

flexible hook up wire

,

pvc hook up wire
Product Name: UL21394
Size: 40 AWG MIN
Conductor: Solid Or Stranded, Tinned Or Bare Copper.
Core Number: Two, Three, Or Four Parallel, Or Two Or More Twisted Insulated Singles Or Groups Of Twisted Singles Twisted Together Or Groups Of Twisted Singles May Be Laid Parallel To Form Flat Or Oval Cable.
Standard: UL758,UL1581, UL2556
Insulation Material: PVC,PE,PP,FOAM-PE, SRPVC, XLPE
Shield Material: Copper, AL-Mylar, Tinned Copper
Sheath Material: TPE
Application: External Interconnection Of Electronic Equipment
Rated Voltage: 30V
Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2
Free Sample: YES
Product Description

UL21394 Multiple-conductor cable using TPE jacket, 80℃, 30V VW-1, 60℃ Oil



Construction

Conductor : Solid or Stranded
Insulation: PVC,PE,PP,FOAM-PE, SRPVC, XLPE

Shield or Braid: Optional

Jacket: TPE



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:30V

Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ Oil

Voltage withstand test:AC0.5kV/1min

Printing :E258652 UL21394 Multiple-conductor cable using TPE jacket, 80℃, 30V VW-1, 60℃ Oil   AWM STYLE 21394 AWGXX 80℃ 30V VW-1 ---c AWM I A/B 80℃ 30V FT1 -LF-HWATEK

Note: Where "XX" means AWG No.





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
