UL10064 Single Conductor with Extruded ETFE, FEP, PFA Insulation,105℃, 30V, VW-1,60 ℃ or 80 ℃ Oil

UL10064 Single Conductor with Extruded ETFE, FEP, PFA  Insulation,105℃, 30V, VW-1,60 ℃ or 80 ℃ Oil
UL10064 Single Conductor with Extruded ETFE, FEP, PFA  Insulation,105℃, 30V, VW-1,60 ℃ or 80 ℃ Oil UL10064 Single Conductor with Extruded ETFE, FEP, PFA  Insulation,105℃, 30V, VW-1,60 ℃ or 80 ℃ Oil UL10064 Single Conductor with Extruded ETFE, FEP, PFA  Insulation,105℃, 30V, VW-1,60 ℃ or 80 ℃ Oil

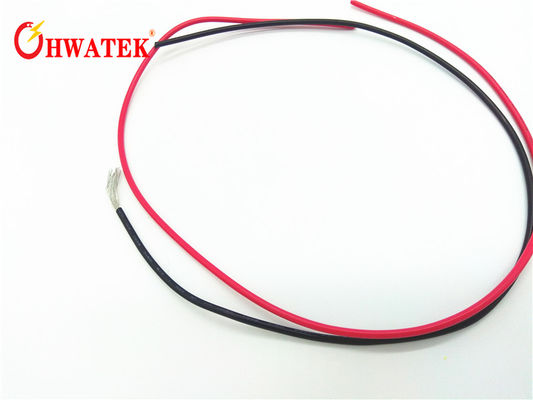

Large Image :  UL10064 Single Conductor with Extruded ETFE, FEP, PFA Insulation,105℃, 30V, VW-1,60 ℃ or 80 ℃ Oil

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL10064
Payment & Shipping Terms:
Minimum Order Quantity: 6.1km
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL10064 Size: 40 AWG Min
Conductor: Solid Or Stranded Core Number: 1core
Standard: UL758,UL1581, UL2556 Insulation Material: ETFE, FEP, PFA
Application: For Further Processing As Insulated Singles In Internal Or External Interconnection Cables For Use In Class 2 Circuits Of Electronic Equipment Rated Voltage: 30V
Temperature: 105℃ Flame: VW-1,FT1,FT2
Free Sample: YES
High Light:

electric hook up cable

,

flexible hook up wire

UL10064 Single Conductor with Extruded ETFE, FEP, PFA Insulation,105℃, 30V, VW-1,60 ℃ or 80 ℃ Oil



Construction

Conductor : Solid or Stranded
Insulation: ETFE, FEP, PFA



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:30V
Rated  Temperature: -40~105
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 0.5kV/1mi







Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
