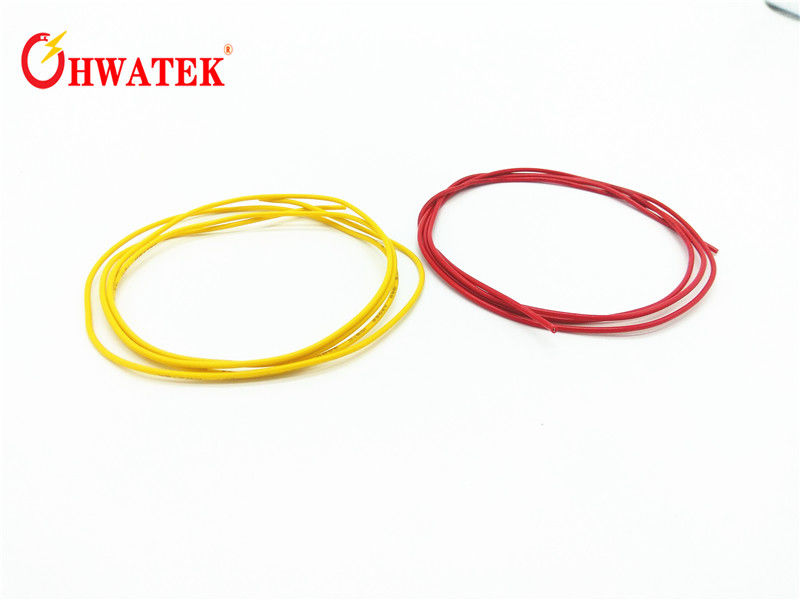

PVC Insulated UL10198 Single Conductor Cable , Heat Resistant Flexible Cable
Basic Properties
Brand Name:
HWATEK
Certification:
UL,CUL, CE,ROHS, REACH
Model Number:
UL10198
Trading Properties
Minimum Order Quantity:
6.1km
Price:
Negotiable
Standard Packaging:
carton/pallet
Delivery Time:
2-3W
Payment Terms:
T/T
Product Summary
UL10198 Single Conductor with Extruded Insulation,105℃, 300V, VW-1,60 ℃ or 80 ℃ Oil Construction Conductor : Solid or Stranded Insulation: PVC Standards International: UL758 , UL1581, UL2556 RoHS,REACH Compliant, Technical data Rated voltage:300V Rated Temperature: -40~105℃ Flame: VW-1, FT1, FT2 Oil ...
Product Details
Highlight:
single core insulated wire
,single conductor shielded cable
Product Name:
UL10198
Size:
30 AWG - 4/0 AWG
Conductor:
Solid Or Stranded
Core Number:
1core
Standard:
UL758,UL1581, UL2556
Insulation Material:
PVC
Application:
Internal Wiring Of Electric Bookkeeping, Accounting, Time-Recording Machines, Electronic, Medical Or Dental Equipment, If Within A Chassis Or Protected From Mechanical Injury.
Rated Voltage:
300V
Temperature:
105℃
Flame:
VW-1,FT1,FT2
Free Sample:
YES
Product Description
UL10198 Single Conductor with Extruded Insulation,105℃, 300V, VW-1,60 ℃ or 80 ℃ Oil
Construction
Conductor : Solid or Stranded
Insulation: PVC
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: -40~105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Voltage withstand test:AC 2.0kV/1mi
Printing :E258652 AWM STYLE 10198 AWGXX 105℃ 300V VW-1 ---c AWM I A/B 105℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.
Specifications
Certificates
UL, CUL, CE
Packing and Shipping
- The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
- If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
- Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
- The cargo, manufacturer, packing details will be labeled on the outer packing;
- About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
- Shipping term, It depends on the value of the goods and the will of the customer.
