Product Name: | AVSS | Size: | 0.3mm2-2mm2 |
---|---|---|---|
Conductor: | Stranded, Tinned Or Bare Copper | Core Number: | 1core |
Standard: | JASO D 611-94 | Insulation Material: | PVC |
Application: | For Internal Wiring Of Automobile | Rated Voltage: | 50V |
Temperature: | 80℃ | Free Sample: | YES |
Highlight: | automotive electrical wire,vehicle electrical wiring |

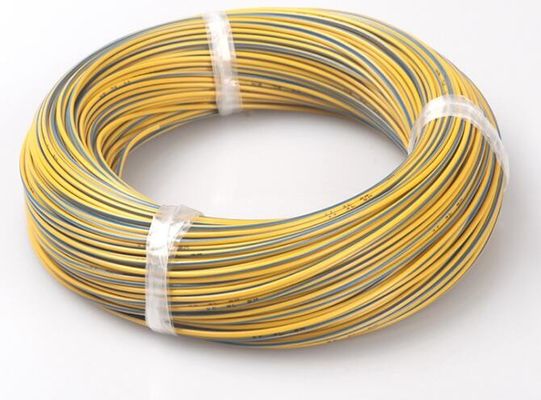

AVSS , Resistant oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength
Construction
Conductor :Stranded, tinned or bare copper
Insulation: PVC
Standards
International:JASO D 611-94
RoHS,REACH Compliant,
Technical data
Rated voltage:50V
Rated Temperature:80℃
Product character:
Uniform insulation thickness to ensure easy stripping and cutting
resistant to oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength
Voltage withstand test:AC 1.0kV/1min
Specifications
Conductor | Insulation |
Max. Cond. Resistance (200C) Ω/km |
||
NOM. AREA OF COND. | NO./mm |
Nom. Thickness mm |
Nom. Dia. mm |
|
0.3 | 7/0.26 | 0.30 | 1.40 | 50.2 |
0.5 | 7/0.32 | 0.30 | 1.60 | 32.7 |
0.85 | 16/0.26 | 0.30 | 1.80 | 21.7 |
0.85 | 7/0.40 | 0.30 | 1.80 | 20.8 |
1.25 | 19/0.29 | 0.30 | 2.10 | 14.9 |
2 | 19/0.37 | 0.40 | 2.70 | 9.00 |
0.3f | 19/0.16 | 0.30 | 1.40 | 48.9 |
0.5f | 19/0.19 | 0.30 | 1.60 | 34.6 |
0.75f | 19/0.23 | 0.30 | 1.80 | 23.6 |
1.25f | 37/0.21 | 0.30 | 2.10 | 14.7 |
2f | 37/0.26 | 0.40 | 2.60 | 9.50 |
Certificates
ROHS, REACH,TS16949
