PVC Insulation Automotive Cable Wire High Flexibility Thermo And Mechanical Strength

PVC Insulation Automotive Cable Wire High Flexibility Thermo And Mechanical Strength
PVC Insulation Automotive Cable Wire High Flexibility Thermo And Mechanical Strength PVC Insulation Automotive Cable Wire High Flexibility Thermo And Mechanical Strength PVC Insulation Automotive Cable Wire High Flexibility Thermo And Mechanical Strength

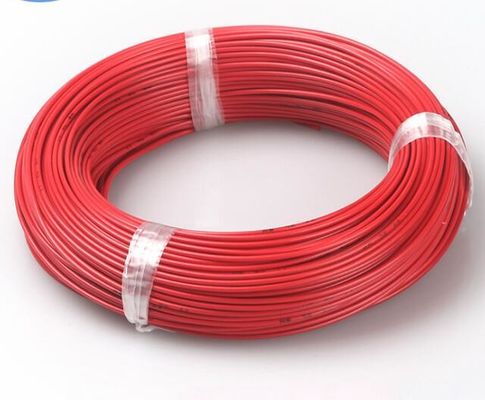

Large Image :  PVC Insulation Automotive Cable Wire High Flexibility Thermo And Mechanical Strength

Product Details:
Brand Name: HWATEK
Certification: ROHS, REACH,TS16949
Model Number: FLRY-B
Payment & Shipping Terms:
Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: FLRY-B Size: 0.22mm2-6mm2
Conductor: Stranded, Tinned Or Bare Copper Core Number: 1core
Standard: DIN 72551-6/1996 Insulation Material: PVC
Application: For Internal Wiring Of Automobile Rated Voltage: 50V
Temperature: 105℃ Free Sample: YES
High Light:

automotive electrical wire

,

car electrical cable

FLRY-B, Resistant oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength



Construction

Conductor :Stranded, tinned or bare copper
Insulation:  PVC



Standards
International:DIN 72551-6/1996

RoHS,REACH Compliant,



Technical data
Rated voltage:50V
Rated  Temperature:105



Product character:

Uniform insulation thickness to ensure easy stripping and cutting

resistant to oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength

Voltage withstand test:AC 1.0kV/1min





Specifications



Conductor Insulation

Max. Cond. Resistance (200C)

Ω/km

NOM. AREA OF COND. NO./mm

Nom. Thickness

mm

Nom. Dia.

mm

0.35 12/0.21 0.20 1.40 54.5
0.5 16/0.21 0.22 1.60 38.2
0.75 24/0.21 0.24 1.90 25.4
1.0 32/0.21 0.24 2.10 19.1
1.5 30/0.26 0.24 2.40 13.0
2.5 50/0.26 0.28 3.00 7.8
4.0 56/0.31 0.32 3.70 4.8
6.0 84/0.31 0.32 4.30 3.2





Certificates



ROHS, REACH,TS16949



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
