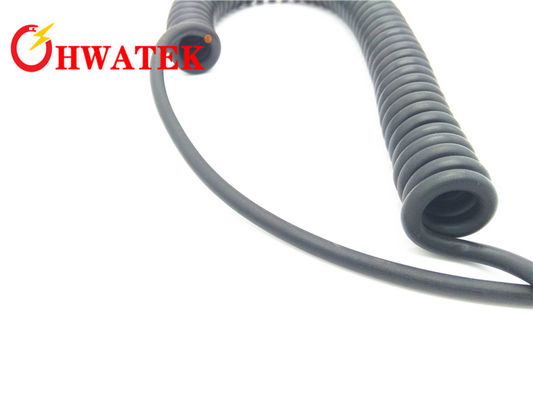

Retractable Curly Spiral Power Cable Signal Wire With PUR Sheath Jacket OEM Service

Basic Properties
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Spiral cable with outer PUR sheath , unshielded
Trading Properties
Minimum Order Quantity: 6.1KM
Price: Negotiable
Standard Packaging: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Tags

curly cable extension lead

spiral electrical wire

coiled electrical wire
Product Summary
Spiral cable with outer PUR sheath , unshielded Construction Conductor : Stranded Tinned or bare copper. Insulation: SRPVC,PE,PP, TPEE Screened:construction with Cu-screening, tinned,approx. 80% Jacket: PUR Standards:International: UL758 , UL1581, UL2556,IEC60228 CL5 RoHS,REACH Compliant, Technical ...

Product Details

Highlight:

curly cable extension lead

,

spiral electrical wire
Product Name: Spiral Cable With Outer PUR Sheath , Unshielded
Conductor: Strand Tinned Or Bare Copper.
Core Number: 2 Cores And Above
Standard: UL758,UL1581, UL2556,IE60228 CL5
Insulation Material: SRPVC,PE,PP, TPEE
Sheath Material: PUR
Application: Lighting Industry,Data Installations,Shops,Telecommunication Etc.
Rated Voltage: 300V
Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2
Free Sample: YES
Product Description

Spiral cable with outer PUR sheath , unshielded



Construction

Conductor : Stranded Tinned or bare copper.
Insulation: SRPVC,PE,PP, TPEE

Screened:construction with Cu-screening, tinned,approx. 80%

Jacket: PUR



Standards:International: UL758 , UL1581, UL2556,IEC60228 CL5

RoHS,REACH Compliant,



Technical data
Rated voltage:300 V
Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 2.0kV/1min



Properties

High restoring forces
Very high flexibility
flame-retardant



Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
