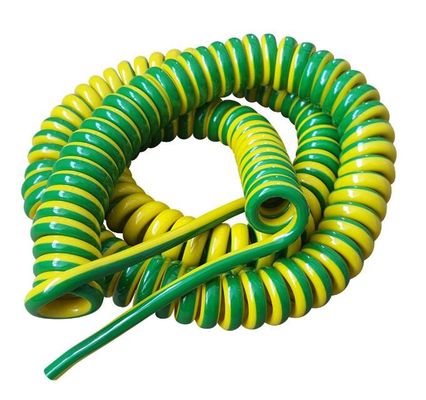

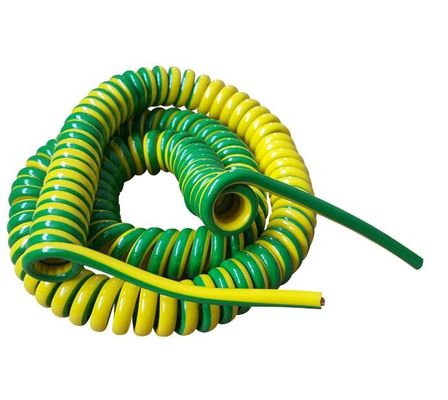

Unshielded Spring Coiled Electrical Cable , 2 Core / 4 Core Curly Power Cord

Unshielded Spring Coiled Electrical Cable , 2 Core / 4 Core Curly Power Cord
Unshielded Spring Coiled Electrical Cable , 2 Core / 4 Core Curly Power Cord Unshielded Spring Coiled Electrical Cable , 2 Core / 4 Core Curly Power Cord

Large Image :  Unshielded Spring Coiled Electrical Cable , 2 Core / 4 Core Curly Power Cord

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Spiral cable ,UL20940 , unshielded
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: Spiral Cable ,UL20940 , Unshielded Conductor: Strand Tinned Or Bare Copper.
Core Number: 2 Cores And Above Standard: STYLE PAGE 20940 FOR UL758 ,UL1581, UL2556,IE60228 CL5
Insulation Material: SRPVC,PE,PP, TPEE Sheath Material: PUR
Application: Machine Construction Electrical Tools Building Industry ,Handling Equipment, Entertainment Equipment, Medical Devices, Measurement Instruments, Rolling Doors Rated Voltage: 600 OR 1000V
Temperature: -40℃-80℃ Flame: VW-1,FT1,FT2
Free Sample: YES
High Light:

coiled electrical wire

,

curly cable extension lead

Spiral cable with outer PUR sheath ,unshielded, UL&cUL Certificated, 80℃ 600V OR 1000V



Construction

Conductor : Stranded Tinned or bare copper.
Insulation: SRPVC,PE,PP, TPEE

Jacket: PUR



Standards:International: STYLE PAGE 20549 FOR UL758 ,UL1581, UL2556,IE60228 CL5

RoHS,REACH Compliant,



Technical data
Rated voltage:600 V OR 1000V
Rated  Temperature:-40-80

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 3.5kV/1min



Properties

High restoring forces
Very high flexibility
flame-retardant

Low temperature



Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø





Specifications







Certificates



UL, CUL, CE
