Halogen Free Spiral Power Cable Shielded 3 Core / 4 Core , Spring Coiled Trailer Wire

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

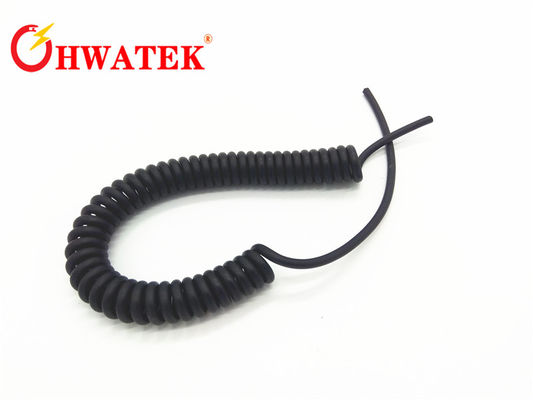

Halogen Free Spiral Power Cable Shielded 3 Core / 4 Core , Spring Coiled Trailer Wire

Halogen Free Spiral Power Cable Shielded 3 Core / 4 Core , Spring Coiled Trailer Wire
Halogen Free Spiral Power Cable Shielded 3 Core / 4 Core , Spring Coiled Trailer Wire Halogen Free Spiral Power Cable Shielded 3 Core / 4 Core , Spring Coiled Trailer Wire

Large Image :  Halogen Free Spiral Power Cable Shielded 3 Core / 4 Core , Spring Coiled Trailer Wire

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Halogen-free Spiral cable with outer PURsheath , shielded
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: Halogen-free Spiral Cable With Outer PUR Sheath , Shielded Conductor: Tinned Or Bare Copper.
Core Number: 2 Cores And Above Standard: UL758,UL1581, UL2556,IE60228 CL5
Insulation Material: PE,PP, TPEE Screened: Construction With Cu-screening, Tinned,approx. 80%
Sheath Material: PUR Application: Lighting Industry,Data Installations,Shops,Telecommunication Etc.
Rated Voltage: 300V Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2 Free Sample: YES
High Light:

coiled electrical wire

,

curly cable extension lead

Halogen-free Spiral cable with outer PUR sheath , shielded



Construction

Conductor : Stranded Tinned or bare copper.
Insulation: PE,PP, TPEE

Screened:construction with Cu-screening, tinned,approx. 80%

Jacket: PUR



Standards:International: UL758 , UL1581, UL2556,IEC60228 CL5

RoHS,REACH Compliant,



Technical data
Rated voltage:300 V
Rated  Temperature:-40-80

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 2.0kV/1min



Properties

High restoring forces
Very high flexibility
flame-retardant

Low temperature



Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø





Specifications











Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
