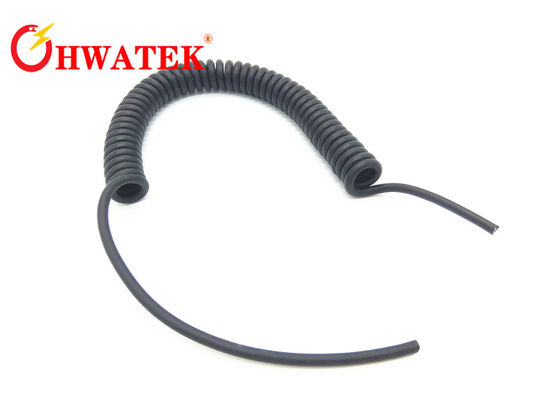

Multi Core Curly Retractile Coiled Cords With Tinned / Bare Copper For Telecommunication

Halogen-free Spiral cable with outer PUR sheath , unshielded

Construction

Conductor : Stranded Tinned or bare copper.
Insulation: PE,PP, TPEE

Jacket: PUR

Standards:International: UL758 , UL1581, UL2556,IEC60228 CL5

RoHS,REACH Compliant,

Technical data
Rated voltage:300 V
Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 2.0kV/1min

Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø

Specifications

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
