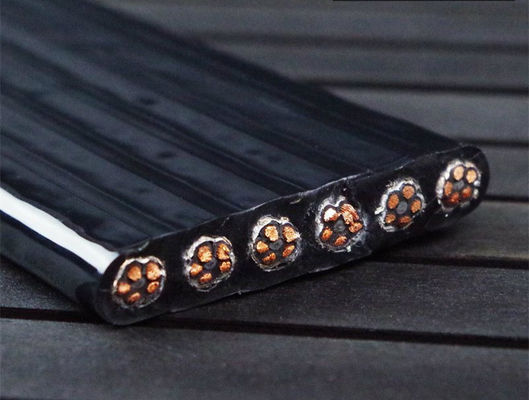

Screened Copper Conductor Flat Electrical Cable , Flat Crane Cable PVC Insulation

Screened Copper Conductor Flat Electrical Cable , Flat Crane Cable PVC Insulation
Screened Copper Conductor Flat Electrical Cable , Flat Crane Cable PVC Insulation

Large Image :  Screened Copper Conductor Flat Electrical Cable , Flat Crane Cable PVC Insulation

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Flat ribbon cable, PVC sheath,screened
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: Flat Ribbon Cable, PVC Sheath,screened Size: 32 AWG - 16 AWG
Conductor: Solid Or Stranded, Tinned Or Bare Copper. Core Number: 2-15 Core
Standard: UL758,UL1581, UL2556 Insulation Material: PVC,PE, SRPVC, PP, FOAM-PE
Shield Material: Copper, AL-Mylar, Tinned Copper Sheath Material: PVC
Application: Internal Wiring Rated Voltage: 300V
Temperature: -40℃-105℃ Flame: VW-1,FT1,FT2
Free Sample: YES
Highlight:

flat wire electrical cable

,

flat electrical cable

UL2468 Flat ribbon cable, screened, 80 ℃, 300 V VW-1, 60 ℃ or 80 ℃ Oil



Construction

Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP, FOAM-PE

Shield or Braid:AL-Mylar, copper and tinned copper braid

Jacket: PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:300 V
Rated  Temperature:-40-105

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min



Properties

Oil resistant,

Extremely small bending radius,

High flexibility,

Minimum waste of space,

Packeting possibility



Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
