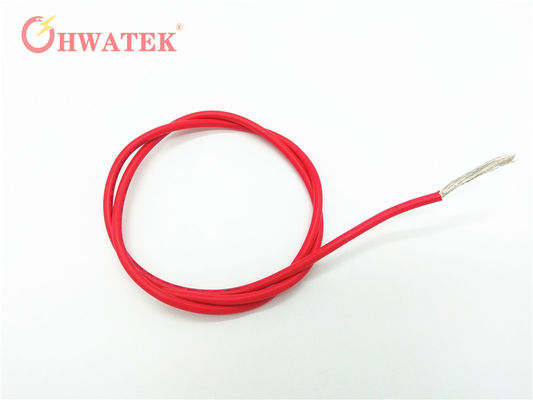

UL10703 Single Conductor Industrial Electric Wire And Cable With Extruded FRPE Insulation

UL10703 Single Conductor with extruded FRPE insulation, High Flexible, Halogen Free,80 ℃, 600V VW-1

Construction

Conductor : stranded, tinned or bare copper. IEC60228 CL5
Insulation: FRPE

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage: 600 V
Rated  Temperature: -20~80℃

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 2.5kV/1min

Printing :E258652    AWM STYLE 10703 AWGXX 80℃ 600V VW-1 ---c AWM I A/B 80℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Minimum bending radius
flexing 10x cable Ø
fixed installation 6x cable Ø

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
