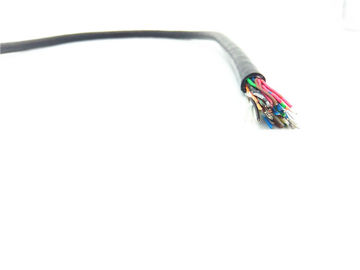

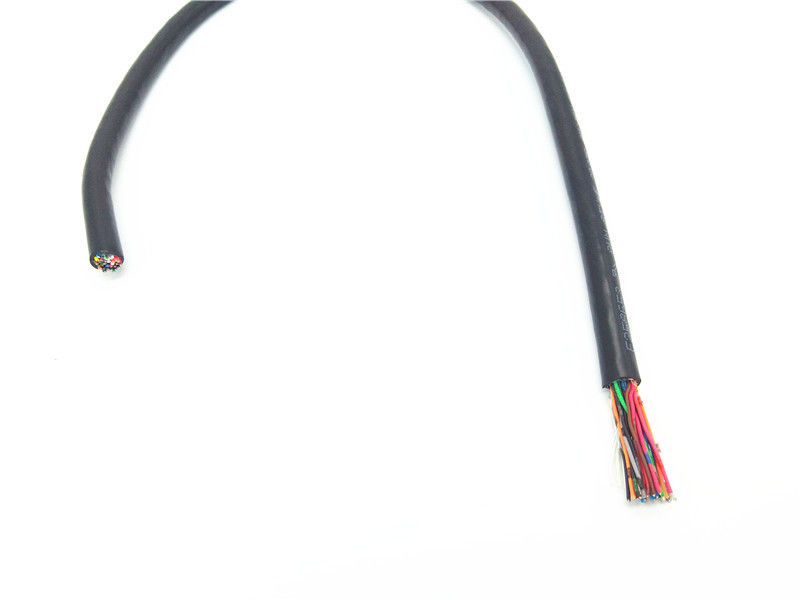

Industrial Multicore Flexible Cable Electrical Wire PVC Sheath Unscreened UL20276

UL20276 Multiple-core Flexible cable,Special PVC Sheath, High Flexible,Unscreened,80 ℃, 30V VW-1

Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC, SRPVC, PP

Jacket: Special PVC

Application:These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:30V

Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 0.5kV/1min

Printing :E258652    AWM STYLE 20276 AWGXX 80℃ 30V VW-1 ---c AWM I A/B 80℃ 30V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Properties

Extensively oil resistant,
Conditional drag chain compatible

Conditional suitability for torsion

low Temperature
self-extinguishing and flame retardant


Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
