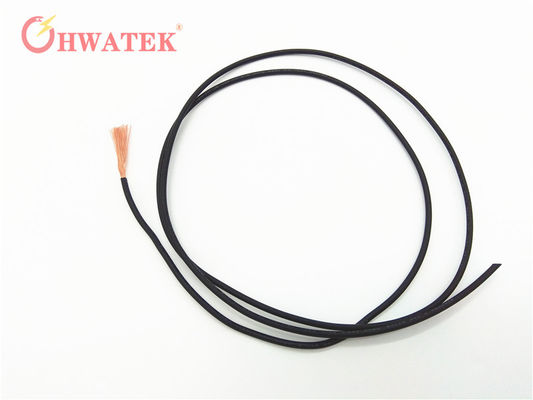

Industrial PUR Single Core Flexible Cable Cold Resistant Halogen Free UV - Radiation

Industrial PUR Single Core Flexible Cable Cold Resistant Halogen Free UV - Radiation
Industrial PUR Single Core Flexible Cable Cold Resistant Halogen Free UV - Radiation Industrial PUR Single Core Flexible Cable Cold Resistant Halogen Free UV - Radiation Industrial PUR Single Core Flexible Cable Cold Resistant Halogen Free UV - Radiation

Large Image :  Industrial PUR Single Core Flexible Cable Cold Resistant Halogen Free UV - Radiation

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: PUR Single Core
Payment & Shipping Terms:
Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: PUR Single Core Size: 30AWG - 4AWG
Conductor: Stranded, Tinned Or Bare Copper, IEC60228 CL5 Core Number: 1core
Standard: UL758,UL1581, UL2556 Insulation Material: PUR
Application: Internal Wiring Of Appliances And Electronic Equipment. Rated Voltage: 300V
Temperature: -40~80℃ Flame: VW-1,FT1,FT2
Free Sample: YES
High Light:

single core pvc insulated cable

,

single core insulated wire

PUR Single Core , cold resistant, halogen-free,UV-radiation



Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation:PUR





Standards


International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data


Rated voltage:300 V
Rated  Temperature:-40~80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.5kV/1min





Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø



Properties



Halogen-free

Flexible at low temperatures up to -40°C

Resistant against pressure

Overroll steady

Cut and scratchproof

Resistant to

Oil

water

Acids

Lye

UV-radiation



Specifications



Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
