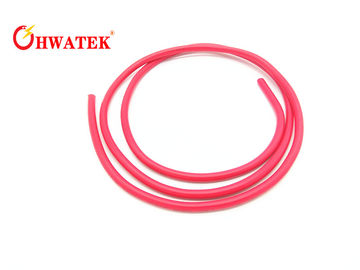

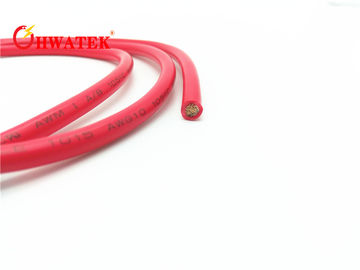

PVC Insulation Energy Cable Stranded Power Cable For Wind Motor UL1015 600V VW-1

UL1015 Power cables of wind motor,PVC Insulation,105 ℃, 600V VW-1

Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:600V

Rated  Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.5kV/1min

Printing :E258652    AWM STYLE 1015 AWGXX 105℃ 600V VW-1 ---c AWM I A/B 105℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Properties

Heat resistance

Oil resistance

Wear resistance

Bending resistance

UV resistance

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
