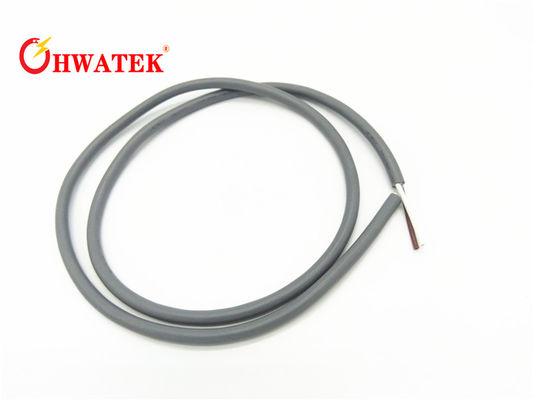

Double Shielded Multi Core Electrical Cable UL2464 For Consumer Electronics Wiring

Basic Properties
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL2464 Double Shielded Computer Cable
Trading Properties
Minimum Order Quantity: 6.1KM
Price: Negotiable
Standard Packaging: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Tags

computer connection leads

computer wires and cables

computer peripheral cable
Product Summary
UL2464 Double Shielded Computer Cable ,effectively resist electromaganetic interference,80 ℃, 300V VW-1 Construction Conductor : solid or stranded, tinned or bare copper Insulation: PVC, PE,PP,SRPVC, FOAM PE Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar Jacket: PVC Standards ...

Product Details

Highlight:

computer wires and cables

,

computer connection leads
Product Name: UL2464 Double Shielded Computer Cable
Size: 40AWG MIN
Conductor: Solid Or Stranded, Tinned Or Bare Copper
Core Number: Multiple-core
Standard: UL758,UL1581, UL2556
Insulation Material: PVC, PE,PP,SRPVC, FOAM PE
Shield Material: Bare Or Tinned Copper Braid Or Spiral And AL-mylar
Sheath Material: PVC
Application: Industrial System, Office System And Consumer Electronics
Rated Voltage: 300V
Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2
Free Sample: YES
Product Description

UL2464 Double Shielded Computer Cable ,effectively resist electromaganetic interference,80 ℃, 300V VW-1



Construction

Conductor : solid or stranded, tinned or bare copper
Insulation: PVC, PE,PP,SRPVC, FOAM PE

Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar

Jacket: PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:300V

Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652 Double Shielded Multi Core Electrical Cable UL2464 For Consumer Electronics Wiring   AWM STYLE 2464 AWGXX 80℃ 300V VW-1 ---c AWM I A/B 80℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.



Properties

effectively resist electromaganetic interference

Excellent insulation performance



Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
