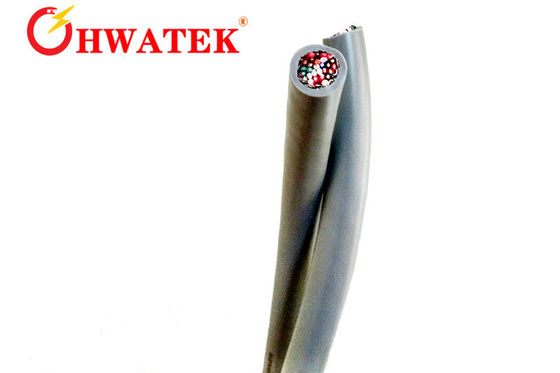

Computer Connection Cables Low Voltage , Braided Electrical Cable UL21099 80 ℃ 30V VW-1

UL21099 Low Voltage Computer Cable ,Halogen-free,effectively resist electromaganetic interference,80 ℃, 30V VW-1

Construction

Conductor : solid or stranded, tinned or bare copper
Insulation:PP, PE, FOAM PE

Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar

Jacket: FRPE

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:30V

Rated  Temperature:-20℃-80℃

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 0.5kV/1min

Printing :E258652    AWM STYLE 20851 AWGXX 80℃ 30V VW-1 ---c AWM I A/B 80℃ 30V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Properties

effectively resist electromaganetic interference

Excellent insulation performance

Halogen-free

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
