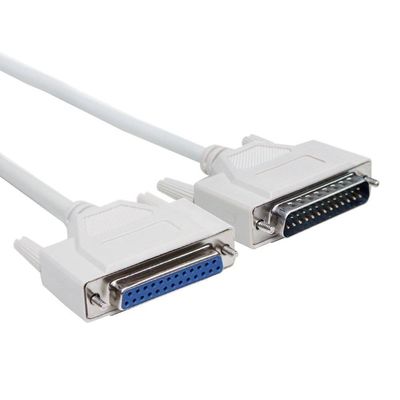

Copper Flexible Signal Transmission Cable SCSI Cable For Signal Control Systems

SCSI Cables High transmission speed, Good shielding property

Construction

Conductor :Sliver copper conductor
Insulation: PE

Shield or Braid: copper wire braid shield or Al-Mylar shield

Jacket: PVC

Standards
International: UL758 , UL1581, UL2556,UL13,UL444

RoHS,REACH Compliant,

Technical data
Rated voltage:30V

Rated  Temperature:-20℃-80℃

Flame: VW-1,CMR,CM,CMG

Voltage withstand test:AC 0.5kV/1min

Properties

High transmission speed, Good shielding property

Excellent insulation performance

Technology parameter:

Impedance (at 20℃): 100±5Ω

Delay: 4.5 ns/m

Delay skew: Intra 10ps/m; Inter 50ps/m

Attenuation: Frequency( GHz)       Att. (dB/m)

                      0.625                           1.24

                      1.25                              1.7

                       1.5                               1.45

                       2.5                               1.98

                       3.75                             2.54

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
