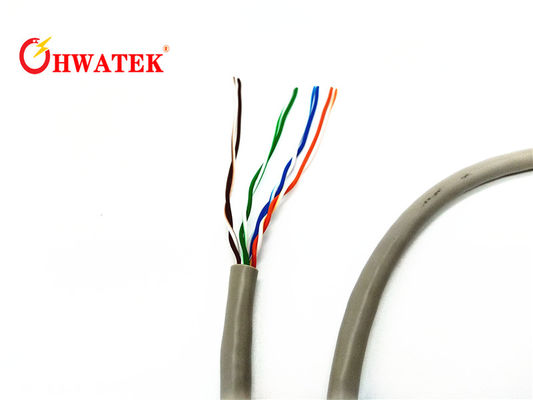

Copper Wire Braid Shielded Cat5E Lan Cable , Cat5E SFTP Cable PE Insulation

Copper Wire Braid Shielded Cat5E Lan Cable , Cat5E SFTP Cable PE Insulation
Copper Wire Braid Shielded Cat5E Lan Cable , Cat5E SFTP Cable PE Insulation Copper Wire Braid Shielded Cat5E Lan Cable , Cat5E SFTP Cable PE Insulation Copper Wire Braid Shielded Cat5E Lan Cable , Cat5E SFTP Cable PE Insulation

Large Image :  Copper Wire Braid Shielded Cat5E Lan Cable , Cat5E SFTP Cable PE Insulation

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, ETL,CE,ROHS, REACH
Model Number: Category 5E Lan Cable, S-FTP
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: Category 5E Lan Cable,S-FTP Conductor: Stranded Or Solid, Tinned, Bare Copper Clad Steel Silvered Plated Copper Conductor
Standard: UL758,UL1581, UL2556,UL444,UL13 Insulation Material: PE
Shield Material: Copper Wire Braid Shield And Al-Mylar Shield Sheath Material: PVC OR FRPE
Application: Products Are Used In 100Base-T4, 100Base-TX, 1000Base-T(Gigabit Ethernet), 155Mbps ATM,622Mbps ATM Rated Voltage: 30V
Temperature: -20℃-80℃ Flame: VW-1,CMR,CM,CMG
Free Sample: YES
Highlight:

power network cable

,

power and signal cable

Category 5E Lan Cable, S-FTP, PVC jacket or Halogen free FRPE JACKET.



Construction

Conductor :Stranded or Solid, tinned, bare copper clad steel silvered plated copper conductor
Insulation: PE

Shield or Braid: copper wire braid shield and Al-Mylar shield

Jacket:PVC or  FRPE



Standards
International: UL758 , UL1581, UL2556,UL13,UL444,IEC61156, TIA568.

RoHS,REACH Compliant,



Technical data
Rated voltage:30V

Rated  Temperature:-20-80

Flame: VW-1,CMR,CM,CMG

Voltage withstand test:AC 0.5kV/1min





Properties

High transmission speed, Good shielding property

Excellent insulation performance



Technology parameter:



Frequency

MHz

Impedance

RL

dB

Attenuation

dB/100m

Next

dB

PsNext

dB

ElFext

dB

PsElFext

dB

0.772 100±15 20 1.80 67 64 66 63
1 100±15 20 2.04 65.3 62.3 63.8 60.8
4 100±15 23 4.05 56.3 53.3 51.7 48.7
8 100±15 24.5 5.76 51.8 48.8 45.7 42.7
10 100±15 25 6.46 50.3 47.3 43.8 40.8
16 100±15 25 8.24 47.3 44.3 39.7 36.7
20 100±15 25 9.26 45.8 42.8 37.7 34.7
25 100±15 24.3 10.42 44.3 41.3 35.8 32.8
31.25 100±15 23.3 11.72 42.9 39.9 33.9 30.9
50 100±15 21.74 15.06 37.2 37.2 30.24 27.24
62.5 100±15 20.7 16.99 38.4 35.4 27.8 24.8
100 100±15 19 21.97 35.3 32.3 23.8 20.8






Specifications





Certificates



UL, CUL,ETL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
