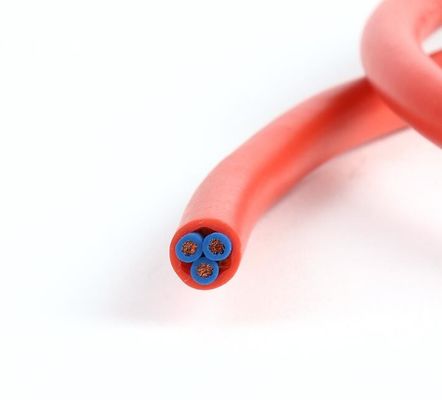

PVC Insulated Industrial Flexible Cable , Multi Core Copper Wire TPE Jacketed

Flexible Cable, number coded, meter marking,Shield, PVC jacketed

Construction

Conductor : stranded, tinned or bare copper
Insulation: PVC,SRPVC,

black cores with continuous white numbering (also available in other colours on request)

GN-YE conductor, 3 cores and above in the outer layer

Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar

Jacket:TPE

Application:These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:300V

Rated  Temperature:-20℃-105℃

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 2.0kV/1min

Properties

Effectively resist electromaganetic interference

Excellent insulation performance

Extensively oil resistant

Flexible

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
