Bright Color Electrical Curly Extension Cord Coiled Power Cable With Copper Conductor

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

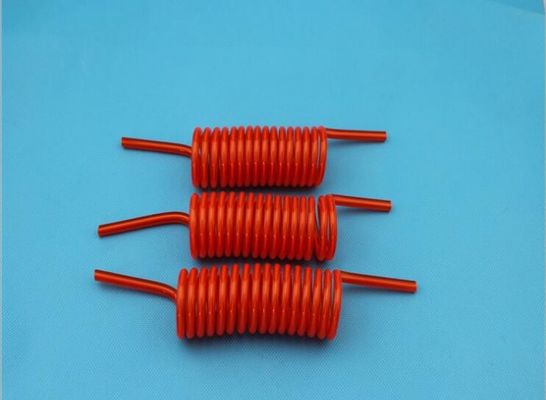

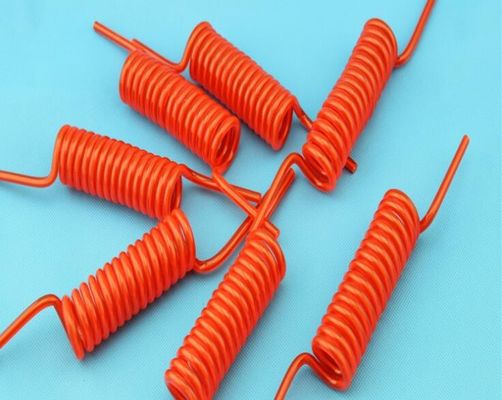

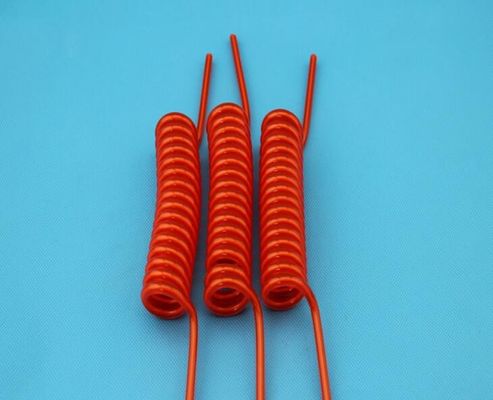

Bright Color Electrical Curly Extension Cord Coiled Power Cable With Copper Conductor

Bright Color Electrical Curly Extension Cord Coiled Power Cable With Copper Conductor
Bright Color Electrical Curly Extension Cord Coiled Power Cable With Copper Conductor Bright Color Electrical Curly Extension Cord Coiled Power Cable With Copper Conductor Bright Color Electrical Curly Extension Cord Coiled Power Cable With Copper Conductor

Large Image :  Bright Color Electrical Curly Extension Cord Coiled Power Cable With Copper Conductor

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Spiral cable ,UL20236 , unshielded
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: Spiral Cable ,UL20236 , Unshielded Conductor: Strand Tinned Or Bare Copper.
Core Number: 2 Cores And Above Standard: STYLE PAGE 20236 FOR UL758 ,UL1581, UL2556,IE60228 CL5
Insulation Material: SRPVC,PE,PP, TPEE Sheath Material: PUR
Application: Machine Construction Electrical Tools Building Industry ,Handling Equipment, Entertainment Equipment, Medical Devices, Measurement Instruments, Rolling Doors Rated Voltage: 30V
Temperature: -40℃-80℃ Flame: VW-1,FT1,FT2
Free Sample: YES
High Light:

coiled electrical wire

,

spiral electrical wire

,

Bright Color Electrical Curly Extension Cord

Spiral cable with outer PUR sheath ,unshielded, UL&cUL Certificated, 80℃ 30V



Construction

Conductor : Stranded Tinned or bare copper.
Insulation: SRPVC,PE,PP, TPEE

Jacket: PUR



Standards:International: STYLE PAGE 20236 FOR UL758 ,UL1581, UL2556,IE60228 CL5

RoHS,REACH Compliant,



Technical data
Rated voltage:30 V
Rated  Temperature:-40-80

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 0.5kV/1min



Properties

High restoring forces
Very high flexibility
flame-retardant

Low temperature



Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
