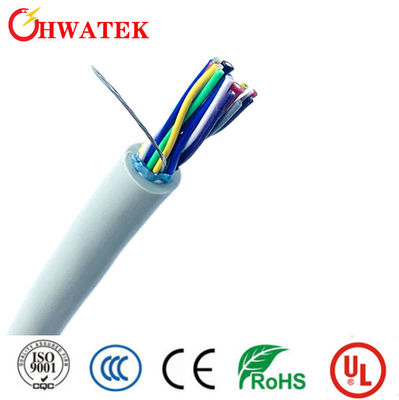

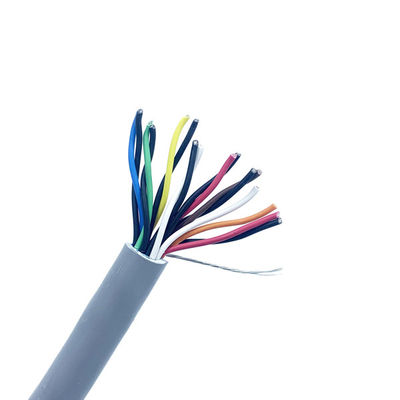

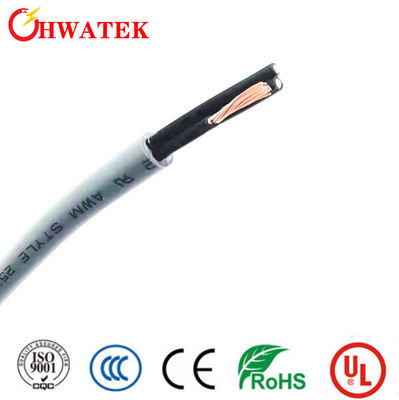

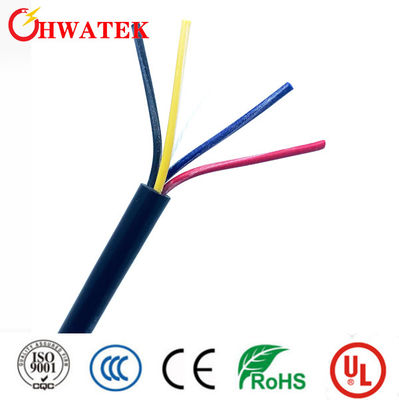

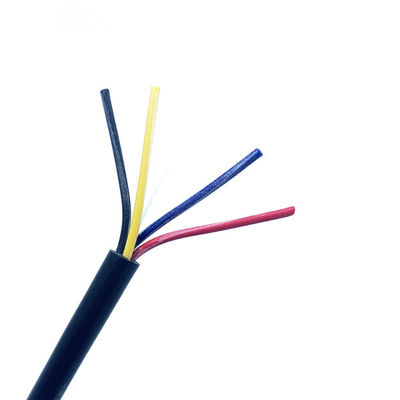

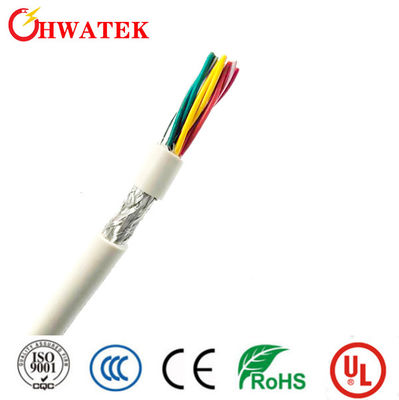

4C X 26AWG Flexible Cable Tinned Copper Stranded Alpha 86104CY UL2661

4C X 26AWG Flexible Cable Tinned Copper Stranded Alpha 86104CY UL2661
4C X 26AWG Flexible Cable Tinned Copper Stranded Alpha 86104CY UL2661

Large Image :  4C X 26AWG Flexible Cable Tinned Copper Stranded Alpha 86104CY UL2661

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: ISO9001, UL, CCC, RoHS
Model Number: UL2661
Payment & Shipping Terms:
Minimum Order Quantity: 305m,610m or as Request
Price: $0.2-1
Packaging Details: Rolled in Reels, Packed in Pallets.
Delivery Time: 4-5 Weeks
Payment Terms: T/T
Supply Ability: 30KM/Day
Detailed Product Description
Material Shape: Round Wire Color: Optional
Transport Package: Rolled In Reels, Packed In Pallets. Typ: Insulated
HS Code: 8544492100
High Light:

Industrial Flexible Cable 26 AWG

,

Alpha 86104CY Industrial Flexible Cable

,

26AWG Flexible Cable

UL2661 4C × 26AWG ( 7/0.16T ) Tinned Copper stranded SR-PVC Insulated Alpha 86104CY Cable

Product Description

Product Description
ITEM 4C×26AWG(7/0.16T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.16mm
O.D.(Ref) 0.48mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.00±0.05mm
CABLING Material Nonwoven tape (25% overlap min.)
Material Al-mylar (face out, 25% overlap min.)
Assembly 4C×26AWG(7/0.16T)
Pitch 12.0 Twists/foot (min)
DRAIN Material Tinned copper stranded
Size 7/0.16±0.008mm
SPIRAL Material Tinned copper
Size 60±2/0.12mm(Coverage:90% min.)
WRAPPED Material Paper (25% overlap min.)
JACKET Material PVC
Min.average thickness 1.00mm
Min.thickness at any point 0.80mm
O.D. 5.10±0.30mm



Construction
Conductor :Tinned copper stranded
Insulation:SR-PVC

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL2661
RoHS,REACH Compliant,

Technical data
Rated voltage:300V
Rated Temperature:-10~105℃
Flame:  FT1
Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance

Extensively oil resistant
Flexible



4C X 26AWG Flexible Cable Tinned Copper Stranded Alpha 86104CY UL2661 04C X 26AWG Flexible Cable Tinned Copper Stranded Alpha 86104CY UL2661 1
