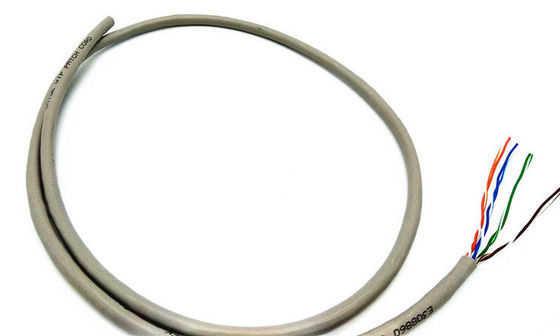

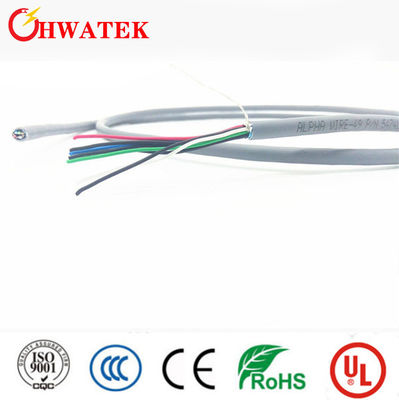

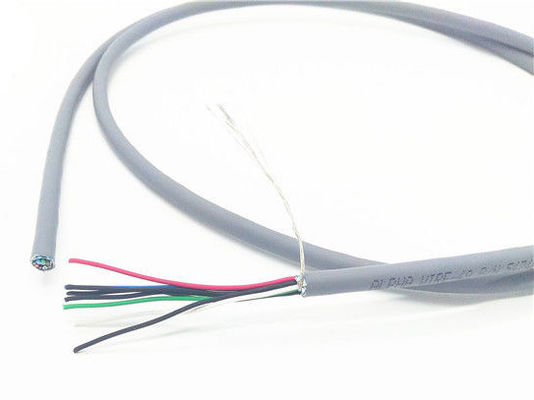

5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606

5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606
5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606

Large Image :  5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: UL, CE, RoHS, Reach
Model Number: UL2661
Payment & Shipping Terms:
Minimum Order Quantity: 1220m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 4-6 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Bare Copper, Tinned Copper, Silver Plated Copper Insulation: SR-PVC
Jacket: PVC Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 300V Temperature: 105℃
High Light:

5CX28AWG Cable

,

PVC Molex Cable

,

PN 884550606 Cable

5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex PN 884550606 Cable



Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581
Product character:

Flame rated : FT1

Tensile strength:≥10.3MPa    Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%



UL758 -E258652-20060111-CertificateofCompliance-1....

ITEM 5C×28AWG(7/0.127T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.127±0.008mm
O.D.(Ref) 0.38mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 0.90±0.05mm
CABLING Material Nonwoven tape
Material Al-mylar(Foil facing out;Overlap Rate≥25%)
Pitch 12Twiste/FT
DRAIN Material Tinned copper stranded
Size 7/0.16±0.008mm
SPIRAL Material Tinned copper
Size 56±3/0.12±0.008mm (90%)
JACKET Material Paper
Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 5.10±0.20mm


Insulation:SR-PVC
Conductor : Tinned copper stranded
Construction

Insulation: 1.black 2.red 3.white 4.green 5.orange

Jacket : grey

Jacket: PVC

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL2464
RoHS,REACH Compliant,

Technical data
Rated voltage:300V
Rated Temperature: 105℃
Flame:  FT1
Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible

5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606 05CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606 15CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606 2



5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606 3





Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.



Certificates
5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606 4

Production Progress

5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606 5

Shipping
5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606 6

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers

5CX28AWG SHLD PVC SLATE ALPHA 86005CY UL2661 Molex Cable PN 884550606 7
