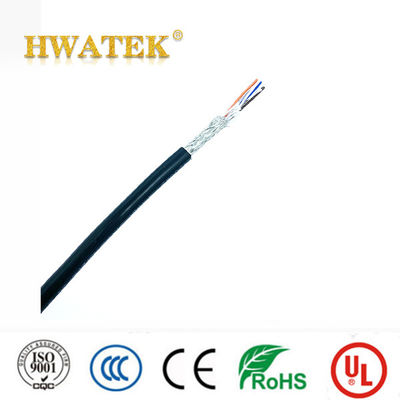

300V 80℃ UL21307 FRPE Jacket Tinned Copper Cable 8P × 28 AWG + WAEB Alpha 78358 Equivalent Cable

300V 80℃ UL21307 FRPE Jacket Tinned Copper Cable 8P × 28 AWG + WAEB Alpha 78358 Equivalent Cable
300V 80℃ UL21307 FRPE Jacket Tinned Copper Cable 8P × 28 AWG + WAEB Alpha 78358 Equivalent Cable

Large Image :  300V 80℃ UL21307 FRPE Jacket Tinned Copper Cable 8P × 28 AWG + WAEB Alpha 78358 Equivalent Cable

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: RoHS, Reach
Model Number: UL21307
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-4 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Tinned Copper Stranded Insulation: PP
Jacket: FRPE Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 300V Temperature: 80℃
HWATEK: HT2302553
High Light:

FRPE Jacket Tinned Copper Cable

,

UL21307 Tinned Copper Cable

,

Industrial Flexible Cable 28 AWG

300V 80℃ UL21307 FRPE Jacket tinned Copper 8P × 28 AWG + WAEB Alpha 78358 equivalent Cable



Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor

Product character:

Flame rated : FT2

Tensile strength:≥8.27MPa    Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥75%

Percent of original elongation: ≥75%



UL758 -E258652-20060111-CertificateofCompliance-1....

Construction
Conductor Tinned Copper Stranded
Cross section 28AWG
Construction 7/0.127mm
Strand Dia. 0.38mm
Insulation PP
Nom.Thickness 0.20mm
Min.Thickness 0.16mm
Insulation Dia. 0.80±0.10mm
Insulation colour 1.white&black 2.white&brown 3.white&red 4.white&orange
5.white&yellow 6.white&green 7.white&blue 8.white&violet
Twisted.(Ref) 1.60mm
Filler Optional
Material Non-woven,≥25%
Material Al-mylar-Al,≥25%
Assembly 8Px28AWG+WA
Drain wire Tinned Copper 7/0.127mm
Braid Tinned Copper
Size 0.10mm,≥70%
Material Paper tape,≥25%
Jacket FRPE
Nom.Thickness 0.51mm
Min.Thickness 0.41mm
Outer Dia. 6.60±0.30mm
Colour Gray


Insulation:PP
Conductor : Tinned copper
Construction

Insulation: 1.white&black 2.white&brown 3.white&red 4.white&orange
5.white&yellow 6.white&green 7.white&blue 8.white&violet

Jacket : per request

Jacket: FRPE

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL21307
RoHS,REACH Compliant,

Technical data
Rated voltage:300V
Rated Temperature:
80℃
Flame:  FT2
Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible



Mechanical Performance
  Jacket
Material FRPE
Tensile strength 8.27MPa
Elongation ≥100%
Aged condition 113±1℃×168H
Percent of original tensile strength 75%
Percent of original elongation 75%
