Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bared Copper Stranded | Insulation: | PVC |
|---|---|---|---|
| Jacket: | PVC | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 450/750V | Temperature: | -30~80℃ |
| HWATEK: | HT2304522 | ||
| Highlight: | Bared Copper Stranded Industrial Flexible Cable,750V Bared Copper Stranded Cable,1.5 Mm2 Bared Copper Stranded Cable |
||

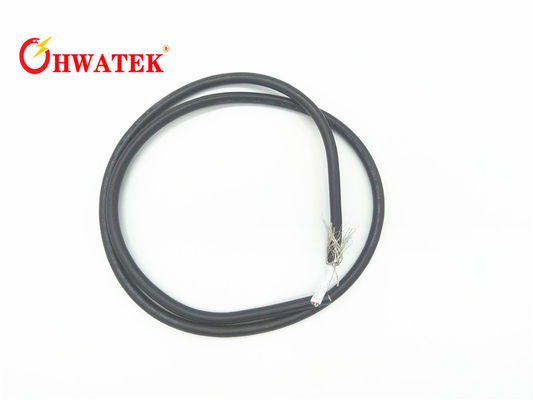

PVC Jacket Bared Copper Stranded 1.5 mm2 4520011 Equivalent Cable 450/750 V
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : FT2
Tensile strength:≥10.3 MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Bare copper stranded | |
| Cross section | 1.5mm2 | |
| Construction | 30/0.254mm | |
| Strand Dia.(Ref.) | 1.61mm | |
| Insulation | PVC | |
| Nom.Thickness | 0.70mm | |
| Insulation Dia. | 3.40±0.20mm | |
| Insulation colour | Per request | |
Insulation:PVC
Conductor : Bared copper stranded
Construction:
Jacket : per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: NOUL
RoHS,REACH Compliant,
Technical data
Rated voltage:450/750V
Rated Temperature: -30~80℃
Flame: FT2
Voltage withstand test:AC 2.5 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance | |
| Rated Temperature | -30 to 80℃ |
| Voltage rating | 450/750V |
| Max.conductor DC resistance(20℃) | 13.7Ω/km |
| Dielectric Strength AC | 2.5 kV/1min |
